Motorola GM950E User Manual

Exploded View Diagrams and Parts
3-4 Maintenance

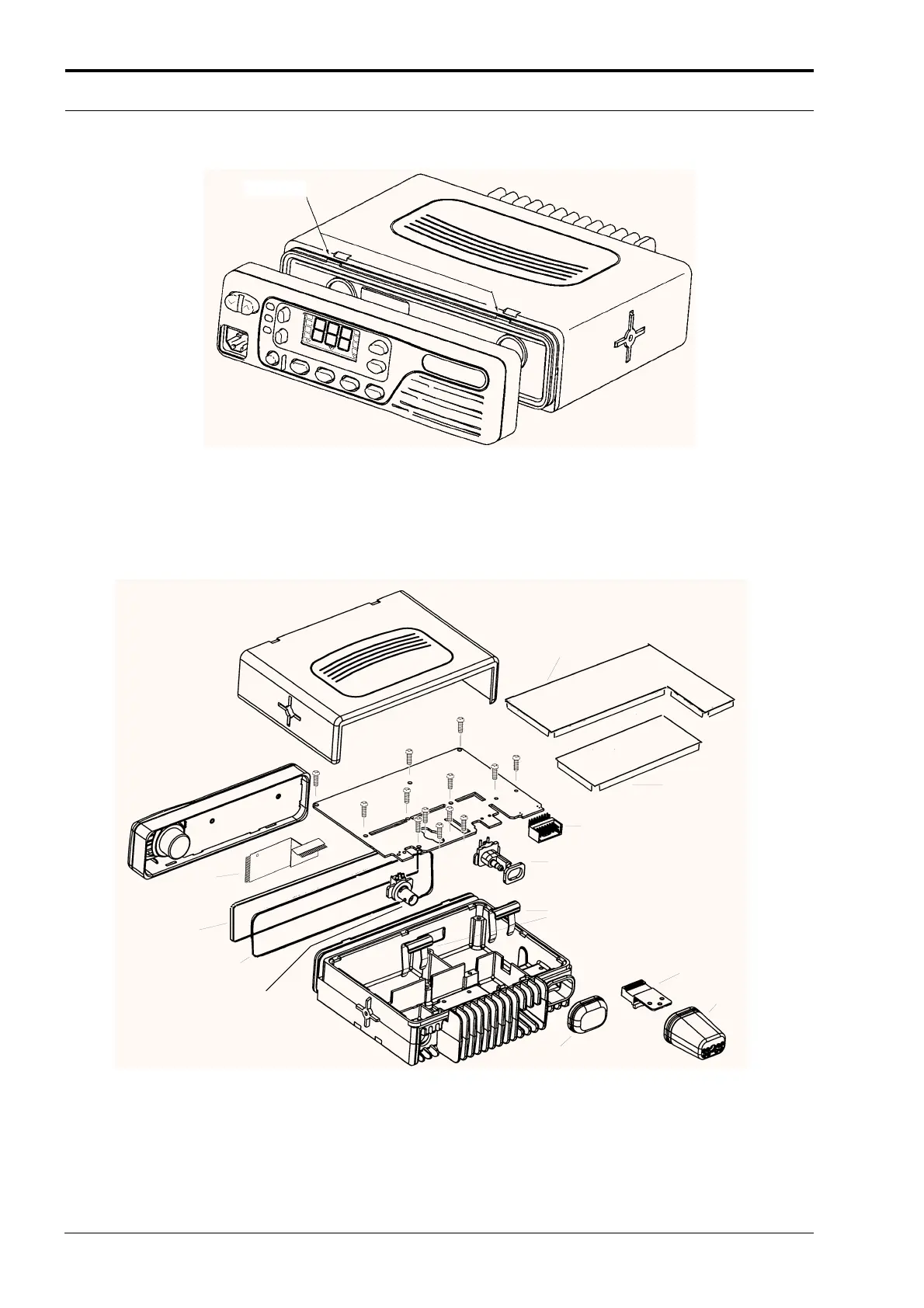

Figure 3-5 Control Head Replacement.
4.0 Exploded View Diagrams and Parts
Figure 3-6 Radio Exploded View Diagram.
Recess
Controlhead with
or without LCD
Cover Chassis 1502609Y01
incl. Gasket Chassis
3202619Y01
Main
PCB
Flex
8402618Y01
Pad
7502618Y01
Gasket 
Controlhead
3202620Y01
Antenna Conn.
0905901V06
incl. Gasket
3205929V01
Chassis
2702608Y01
Shield
2602640Y01
Shield
2602639Y01
Accessory Conn. 16Pin
2804503J01
Power Conn. 0905902V01
Gasket 3205930V01
Clip 4205938V01
Connector 1580922V01
Gasket Accessory Conn.

3202606Y01
Gasket Cover
3202607Y01
Screw M3x10
03S10911A12
