Motorola GP328 Detailed Service Manual

6E-8 Frequency Generation Circuitry
5.0 Frequency Generation Circuitry
The frequency generation circuit, shown in Figure 6-3 , is composed of Low Voltage Fractional-N
synthesizer U205 and discrete RX VCO, TX VCO.and buffers as well other supporting circuitry. The
synthesizer block diagram illustrates the interconnect and support circuitry used in the region. Refer
to the schematic for the reference designators.
The synthesizer is powered by regulated 5V and 3.3V. The 5 volt signal to the synthesizer as well as
the rest of the radio is provided by U204. The 3.3 v signal is provided from U400 in the controller. The
5V signal goes to pins 13 and 30 while the 3.3V signal goes to pins 5, 20, 34 and 36 of U201. The
synthesizer in turn generates a superfiltered 4.3V which powers the VCOs and buffers.
In addition to the VCO, the synthesizer also interfaces with the logic and ASFIC circuitry.
Programming for the synthesizer is accomplished through the data, clock and chip select lines (pins
7, 8 and 9) from the microprocessor, U409. A 3.3V dc signal from pin 4 indicates to the
microprocessor that the synthesizer is locked.
Transmit modulation from the ASFIC is supplied to pin10 of U205. Internally the audio is digitized by
the Fractional-N and applied to the loop divider to provide the low-port modulation. The audio runs
through an internal attenuator for modulation balancing purposes before going out at pin 41 to the
VCO.

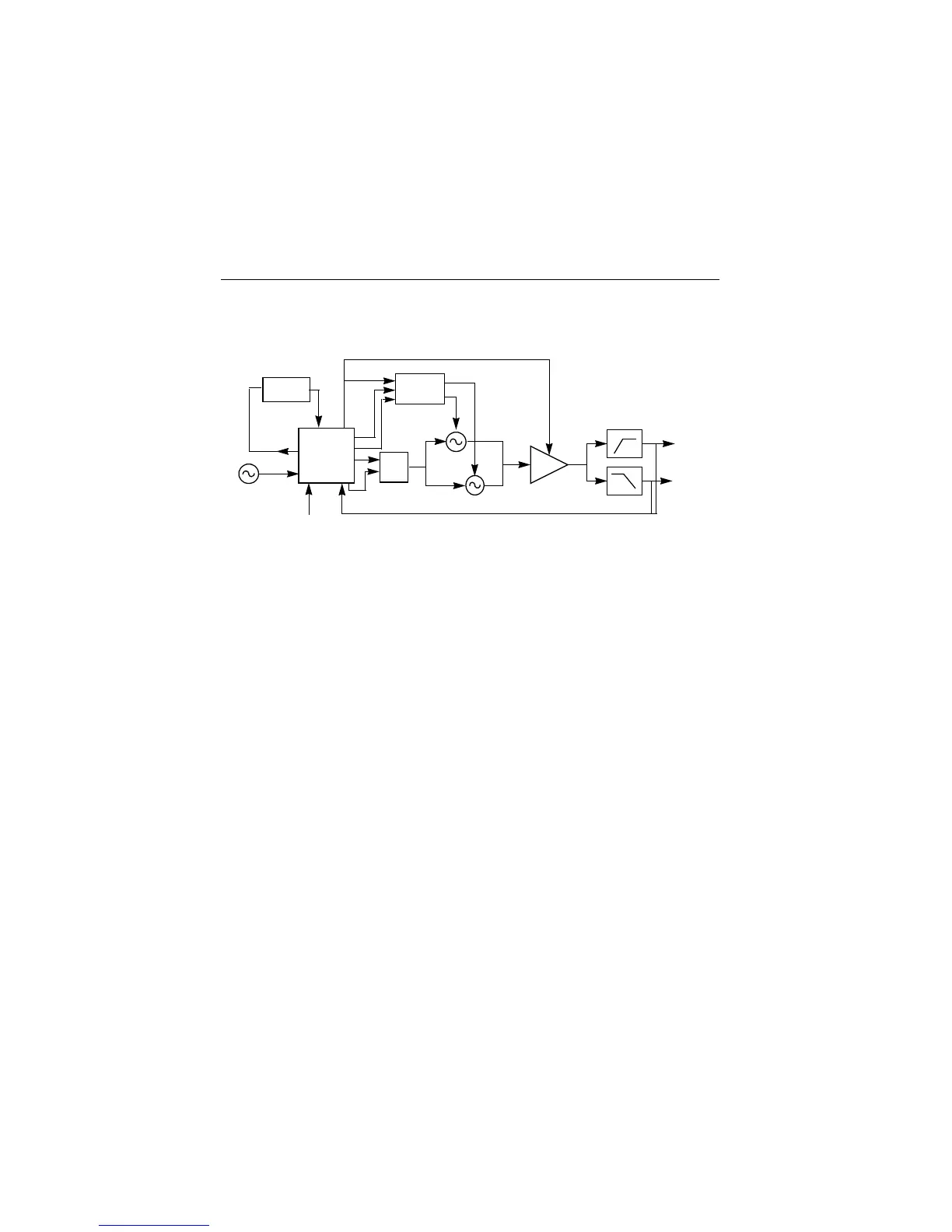

Figure 6-3: Lowband Frequency Generation Unit Block Diagram
Voltage
Multiplier
Synthesizer
U205
Loop
Filter
To
Mixer
To PA
Driver
VCP
Aux2
Aux3
MOD Out
Modulating
Signal
Indmult
17.0 MHz
Ref. Osc.
Switching
Network
VSF
Prescalar input
TX VCO
RX VCO
Buffer
