Motorola MBP483 User Manual

12 Getting Started

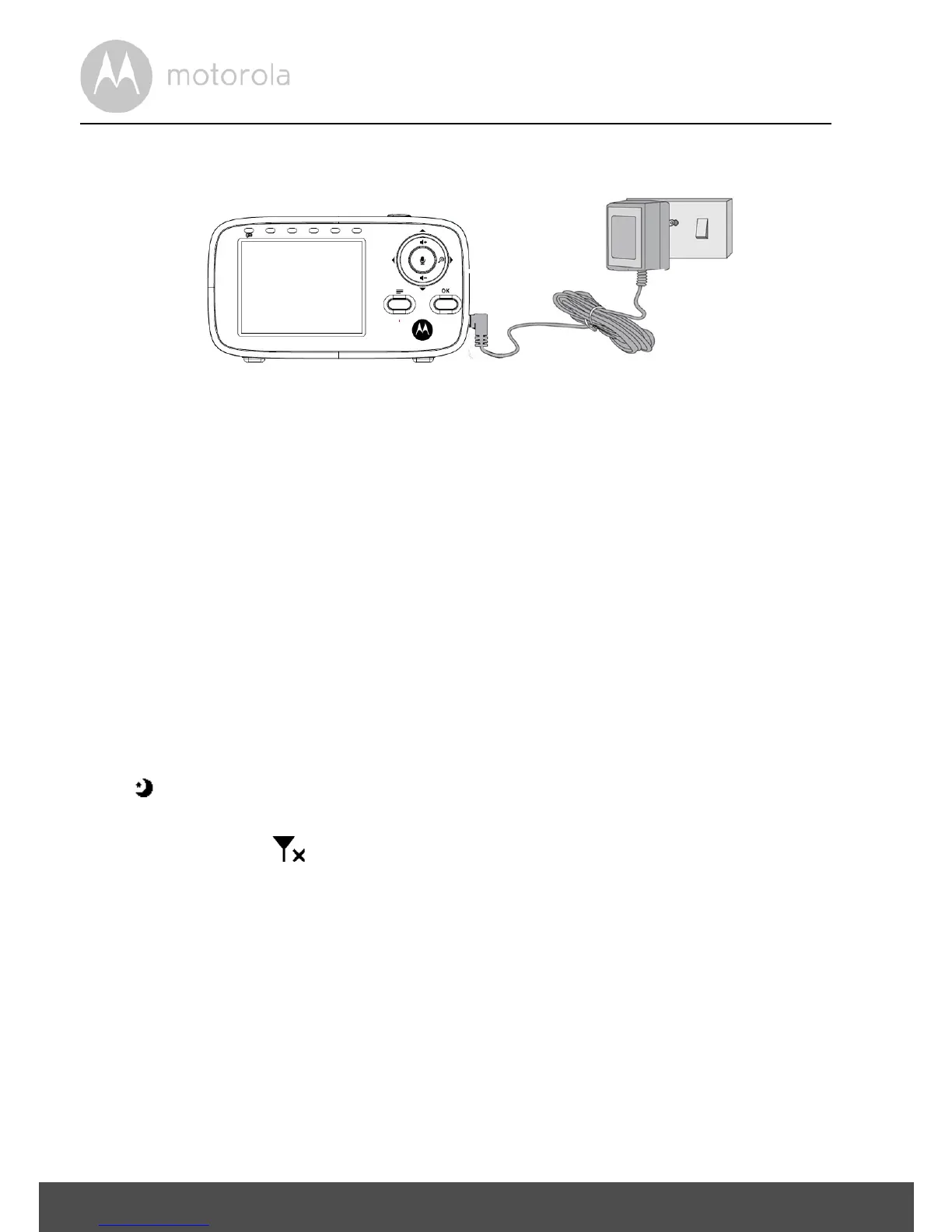

2.3 Parent Unit Power Supply
1. Insert the DC plug of the power adapter into the DC socket on the side of
the Parent Unit.
2. Connect the other end of the power adapter to a suitable electrical outlet.
The battery status indicator lights up in green.
IMPORTANT
Only use the supplied power adapter and battery pack. While the Parent Unit
can work with the power adapter connected, without a battery pack, it is
recommended that you install and charge the rechargeable battery pack fully
before use. This will allow the Parent Unit to operate on battery in the event of a
power failure, or when moving to a different room.
3. Once the Baby and Parent Units are both switched ON, the display on the
Parent Unit will show the color image captured by the Baby Unit. But if the
room is dark, the image will be displayed in black and white and with a
icon, due to infra-red illumination by the Baby Unit.
4. If there is no connection or you are out of range, the video display will go
off, the symbol will flash on the LCD screen. Move the Parent Unit
closer to the Baby Unit to re-establish the link.

Motorola MBP483 Specifications

General

Type	-
Maximum range	- m
Volume control	Buttons
Frequency range	2407.5 - 2475 MHz
Channels quantity	21 channels
Number of brightness levels	5
Display type	LCD
Product color	Silver
Operating temperature (T-T)	5 - 45 °C
Battery voltage	3.6 V
AC input voltage	100-240 V
Battery capacity	800 mAh
Power consumption	1000 mA
Power source type	AC, Battery
AC input frequency	50 - 60 Hz
Battery technology	Nickel-Metal Hydride (NiMH)
Receiver power source	Battery
Transmitter power source	AC
LED type	IR
Sensor type	CMOS
Fixed aperture	2.6 mm
Fixed focal length	2.7 mm
Camera resolution (numeric)	0.3 MP
Number of illumination LEDs	6
Display diagonal	2.8 \
Frequency band	2.407 - 2.475 GHz
