Motorola MBP483 User Manual

Overview of Your Baby Unit
Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and the Parent Unit together, you must be
able to establish a radio link between them, and the range may be affected
by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic
doors or reinforced concrete between the Baby and Parent Units may block
the radio signal.
• The signal strength may also be reduced by other solid structures, like walls
or electrical equipment, such as radios, TVs, computers, cordless or mobile
phones, fluorescent lights or dimmer switches.
• Use of other 2.4 GHz products, such as wireless networks (Wi-Fi
®
routers),
Bluetooth
®
systems, or microwave ovens, may cause interference with this
product, so keep the Baby Monitor at least 5 feet from these types of
products, or turn them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to different
positions in the rooms.

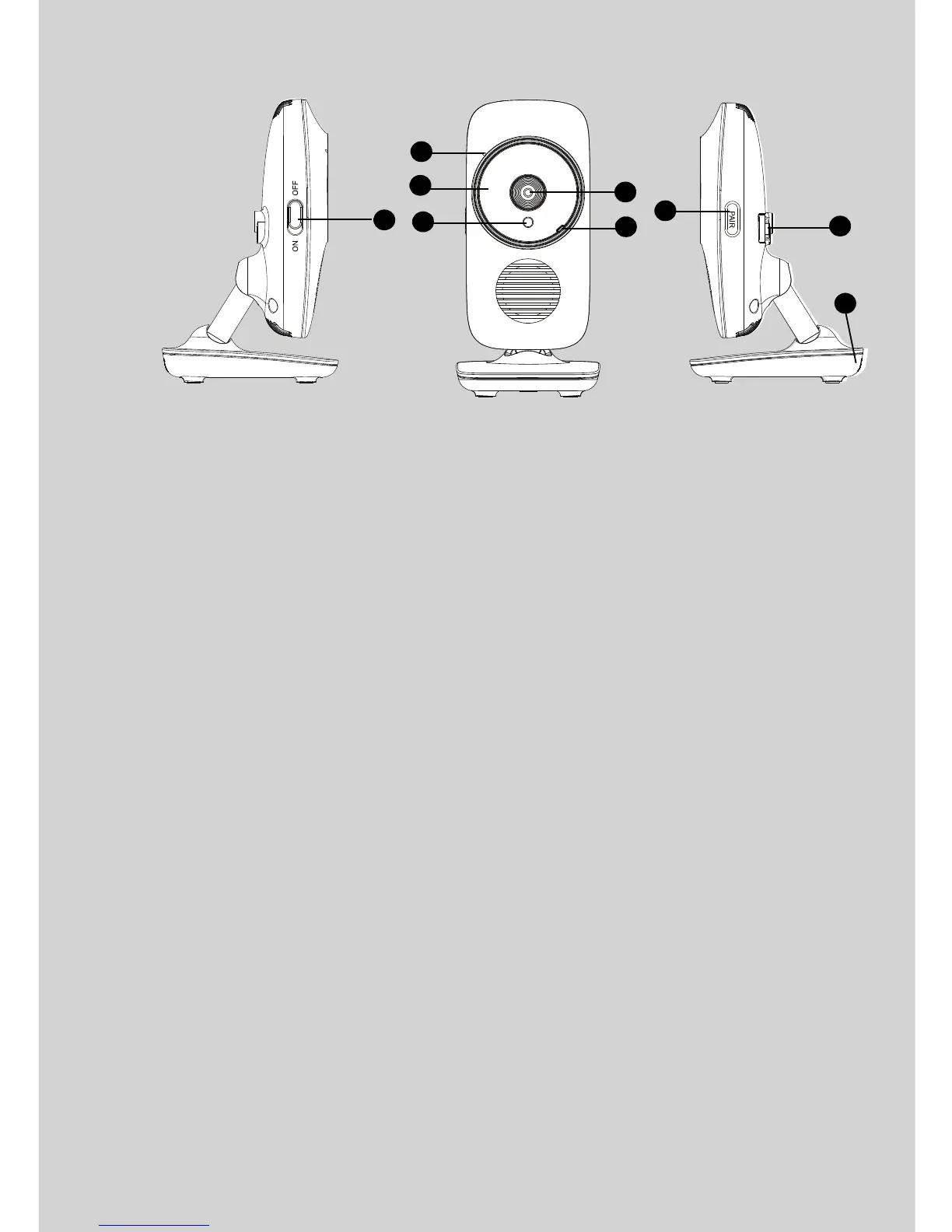

1. Power ON/OFF switch
Slide to turn the Baby Unit on or off.
2. Microphone
3. Infrared LEDs (6)
4. Light Sensor (Night Vision Mode)
5. Camera Lens
6. Power/Link indicator
Lights up in green when the Baby
Unit is turned on and linked to the
Parent Unit.
Flashes in green when the Baby Unit
is searching for the Parent Unit, or in
pairing mode.
Off when the Baby Unit is powered
off.
7. Pair Key
Press and hold to pair with the
Parent Unit.
8. Power Adapter Socket
9. Tem p e rat u r e S e nso r
1
6
7
2
3
4
5
8
9

Motorola MBP483 Specifications

General

Type	-
Maximum range	- m
Volume control	Buttons
Frequency range	2407.5 - 2475 MHz
Channels quantity	21 channels
Number of brightness levels	5
Display type	LCD
Product color	Silver
Operating temperature (T-T)	5 - 45 °C
Battery voltage	3.6 V
AC input voltage	100-240 V
Battery capacity	800 mAh
Power consumption	1000 mA
Power source type	AC, Battery
AC input frequency	50 - 60 Hz
Battery technology	Nickel-Metal Hydride (NiMH)
Receiver power source	Battery
Transmitter power source	AC
LED type	IR
Sensor type	CMOS
Fixed aperture	2.6 mm
Fixed focal length	2.7 mm
Camera resolution (numeric)	0.3 MP
Number of illumination LEDs	6
Display diagonal	2.8 \
Frequency band	2.407 - 2.475 GHz
