Identifying Status Indicators
Your radio indicates its operational status through the following:
LED Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Audio Tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
LED Indicator
The LED indicator shows the
operational status of your radio.
Blinking red – Radio is
transmitting at low battery
condition, receiving an
emergency transmission or has
failed the self-test upon
powering up, or has moved out
of range if radio is configured
with Auto-Range Transponder
System.
Solid yellow – Radio is
monitoring a conventional
channel. Also indicates fair
battery charge when Battery Strength button is pressed.
Blinking yellow – Radio is scanning for activity or receiving a
Call Alert, or all local Linked Capacity Plus channels are busy.
Rapidly blinking yellow – Radio is actively searching for a new
site.
Double blinking yellow – Radio is no longer connected to the
repeater while in Capacity Plus or Linked Capacity Plus, all
Capacity Plus channels and Linked Capacity Plus channels are
currently busy, Auto Roaming is enabled, radio is actively
searching for a new site. Also indicates radio has yet to respond
to a group call alert, or radio is locked.
Solid green – Radio is powering up, or transmitting. Also
indicates full charge of the battery when Battery Strength button
is pressed.
Blinking green – Radio is receiving a non-privacy-enabled call
or data, detecting activity or retrieving Over-the-Air
Programming transmissions over the air.
Double blinking green – Radio is receiving a privacy-enabled
call or data.
Note: While in conventional mode, when the LED blinks
green, it indicates the radio detects activity over the air.
Due to the nature of the digital protocol, this activity
may or may not affect the radio's programmed
channel.

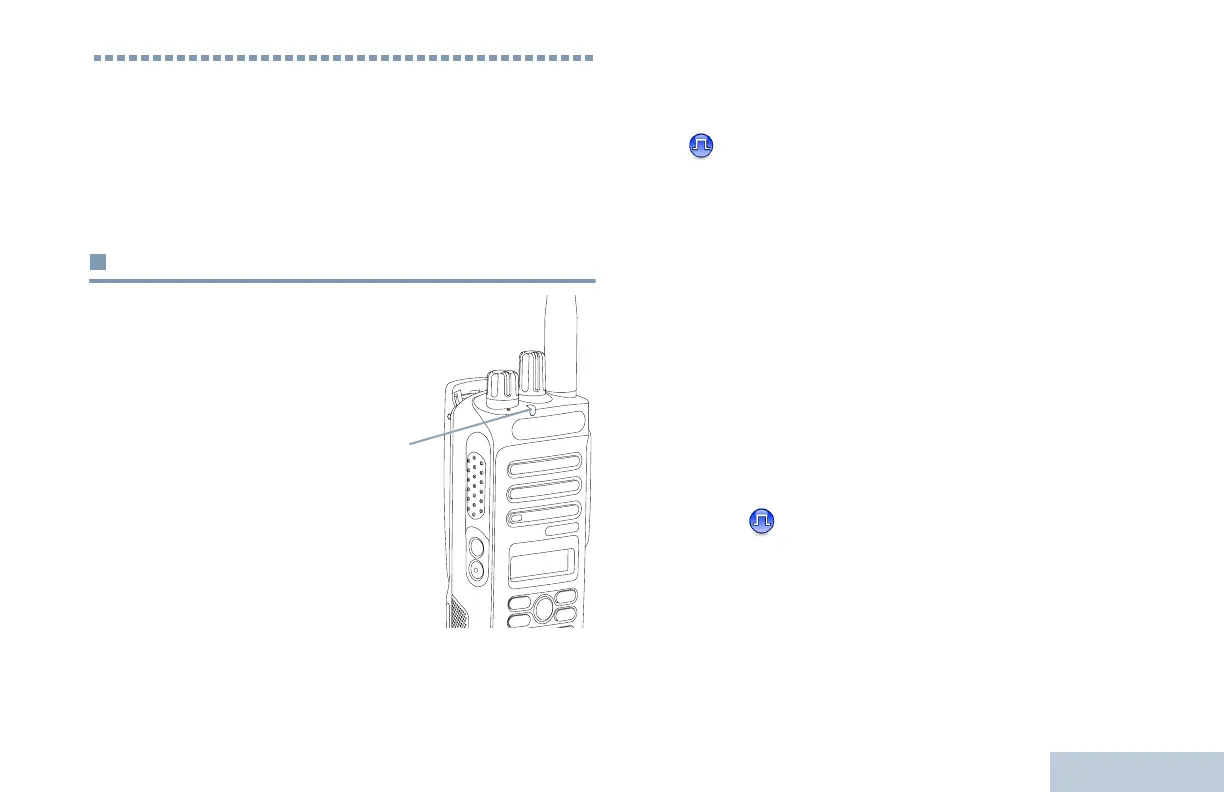

LED
Indicator
NDP_ANZ-EMEA.book Page 15 Thursday, July 19, 2012 8:22 AM

Motorola MOTOTRBO DP2400 Specifications

General

Channel Capacity	16 channels
Power Output	VHF: 1-5W, UHF: 1-4W
IP Rating	IP55
Digital Protocol	DMR
Operating Temperature	-30°C to +60°C
Programmable Buttons	2
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
