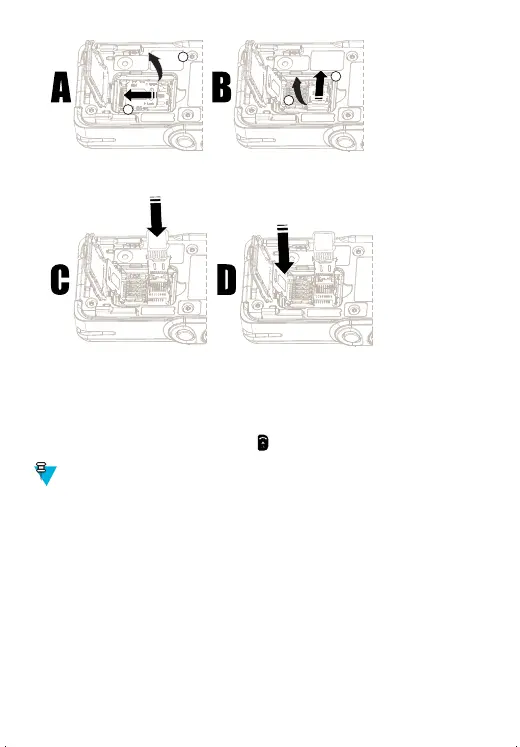

5 Insert the microSD card (C) and close the microSD card holder.
6 Insert the SIM card (D) and close the SIM card holder.
7 Close the compartment cover.
8 Replace the battery.
Turning the Radio On/Off
To power the radio on/off, press and hold
.
If the Covert Mode is activated, the radio powers on without visible and
audible notifications.
Holding Your Radio
The radio has two microphones:
•
A top microphone for simplex group, dispatcher, or private calls
• A bottom microphone for duplex, telephone-like calls
Simplex Calls
When making simplex calls (high audio), hold the radio in a vertical position with the
top microphone 5 to 10 centimeters away from your mouth. Speak into the top
microphone. Listen via the radio internal speaker. Keep the antenna at least 2.5
centimeters from your head and body.
QuickStartGuide6550.pdf 5 10/16/2013 4:25:32 PM
