Product Overview
Front Panel

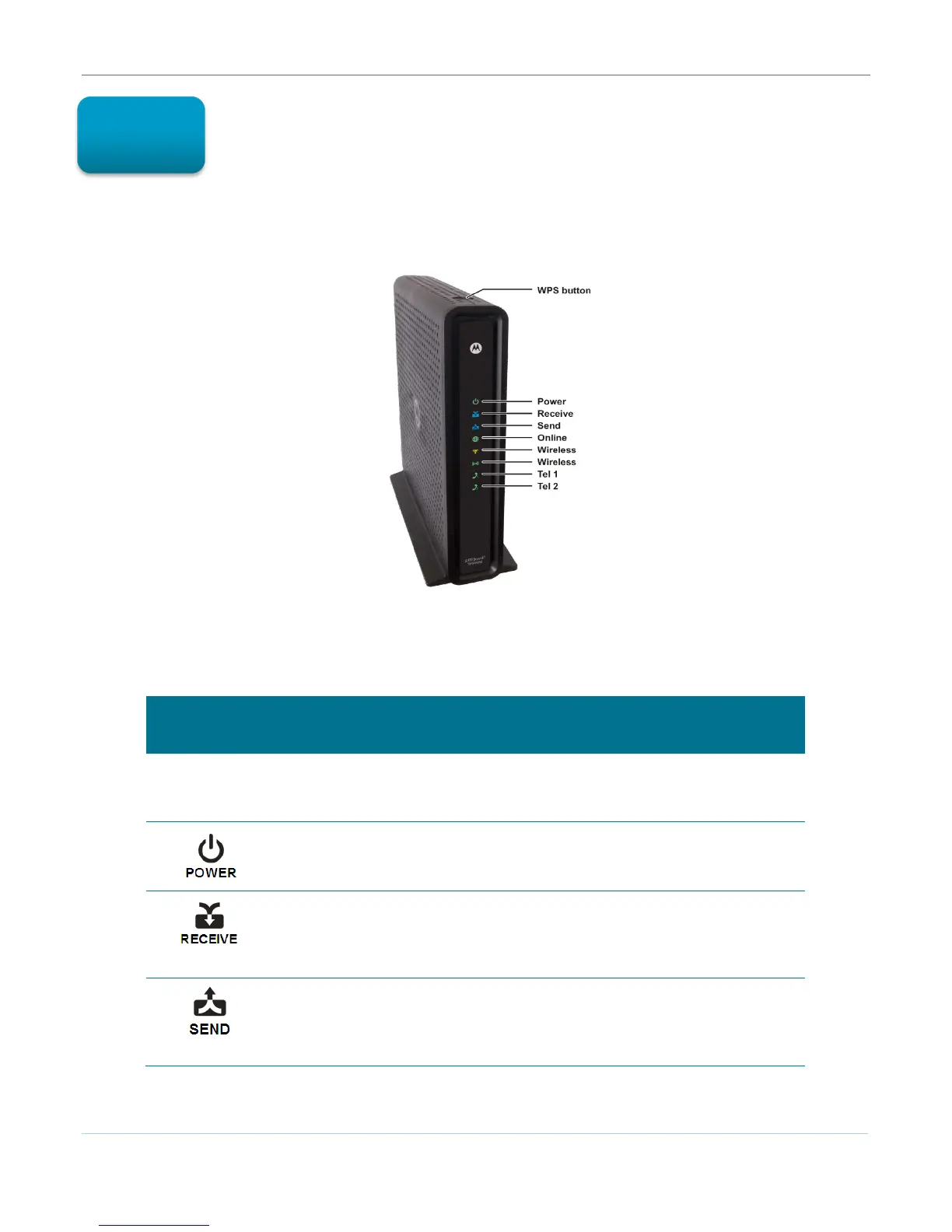

Figure 1 – SVG6x82 Front View
Table 2 – SVG6x82 Front Panel LED Icons
BUTTON/LED
ICON
FLASHING
ON
WPS button
Not applicable — no LED on button Not applicable — no LED on button
See Wi-Fi Protected Setup (WPS) for
more information
Not applicable — LED does not
flash
Green: Power is properly connected
Scanning for a downstream
(receive) channel connection
Green: Non-bonded downstream channel
is connected
Blue*: High-speed Internet connection with
bonded downstream channels
Scanning for an upstream (send)
channel connection
Green: Non-bonded upstream channel is
connected
Blue*: High-speed Internet connection with
bonded upstream channels
