Monitoring Your Network B
SVG6x82 Series Wireless Voice Gateway • User Guide
23
Viewing the Gateway Status
The Status Connection page displays information about the RF upstream and downstream channels,
including downstream channel frequency, upstream channel ID, and upstream and downstream signal
power and modulation.
This page also displays IP lease information, including the current IP address of the cable modem, the
duration of both leases, the expiration time of both leases, and the current system time from the
DOCSIS timeserver.
To open the Status Connection page:
1. Click Status on the SVG6x82 Menu Options bar.
2. Click Connection from the Status submenu options.

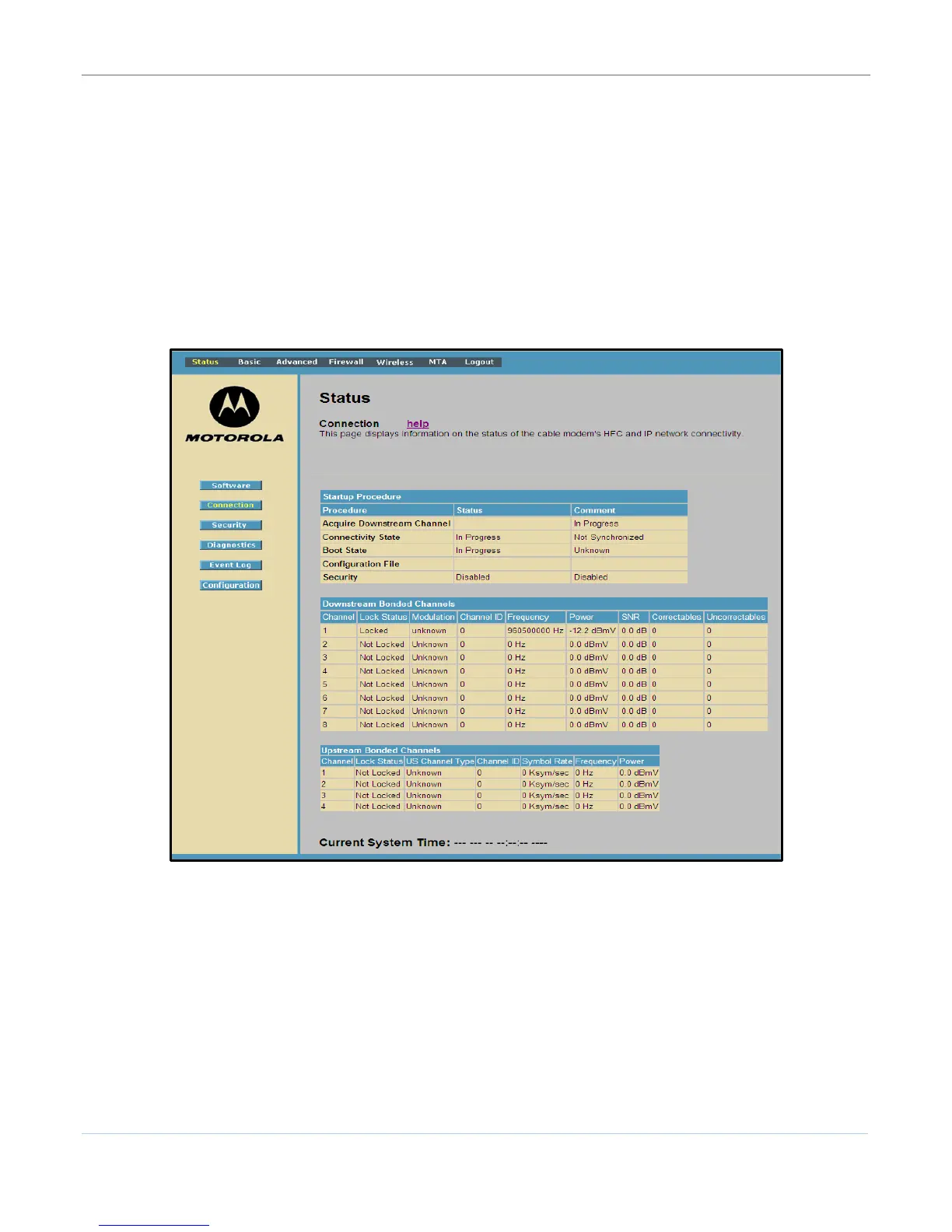

Figure 17 – SVG6x82 Status Connection Page
