W160/W156/
W180/W175/W16
1/W181
31
12-December-200
7
Part Number Chart
s
The following section provides a reference for the parts associated with
W160/W156/W180/
W175/W161/W181 teleph
ones.

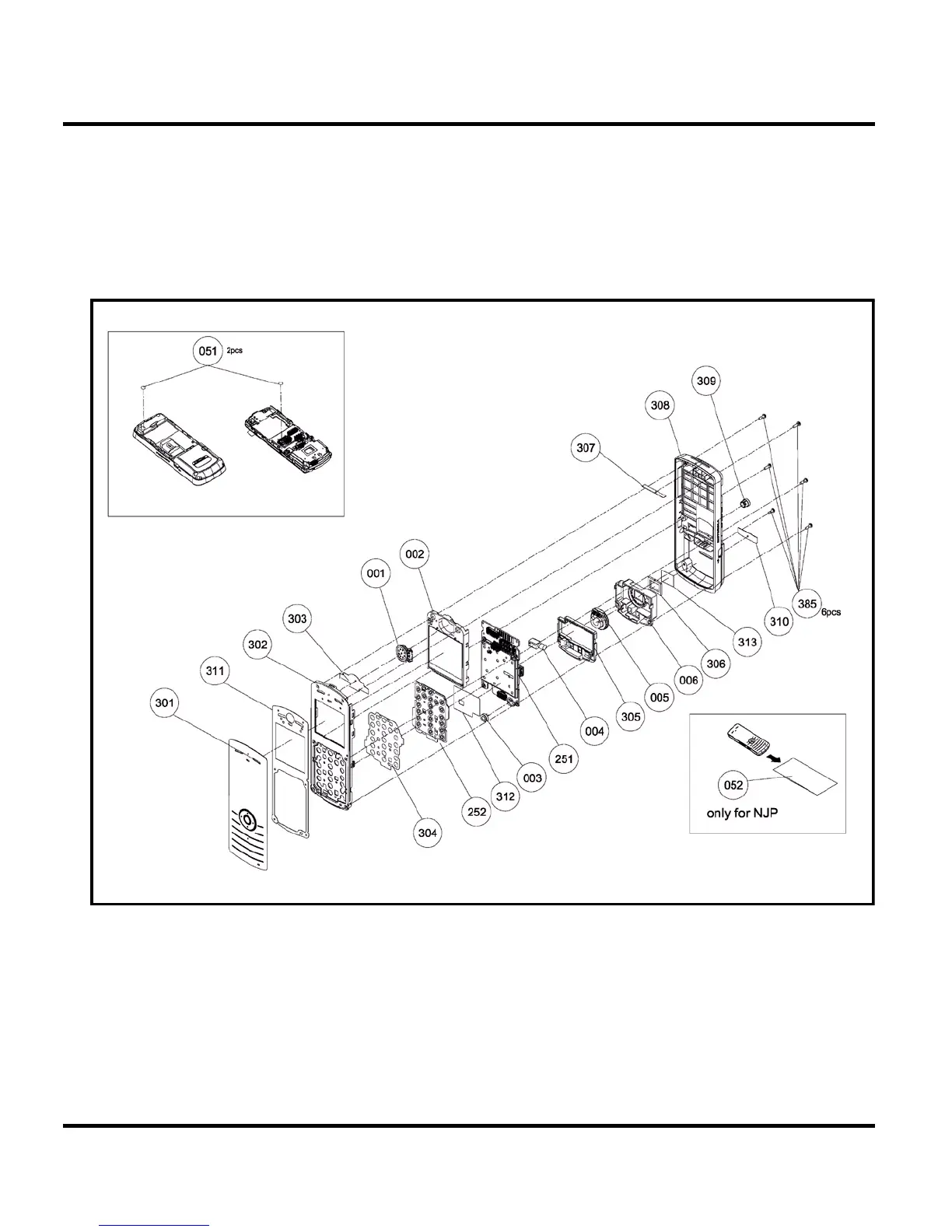

Exploded View Diagram (W160)
Figure 23.
W160 (H28) Ex
ploded V
iew Diagram
30
32
Table of Contents
Default Chapter
2
Table of Contents
2
Introduction
4
Product Identification
4
Product Names
4
Product Changes
4
Regulatory Agency Compliance
4
Computer Program Copyrights
5
About this Service Manual
5
Warranty Service Policy
6
Out of Box Failure Policy
6
Product Support
6
Parts Replacement
7
Specifications
8
Product Overview
10
Features
10
Caller Line Identification
11
Other Features
11
General Functions
12
Controls, Indicators, and Input/Output (I/O) Connectors
12
User Interface Menu Structure
14
Battery Function
15
Operation
15
Tools and Test Equipment
15
Disassembly
16
Removing and Replacing the Battery
17
Removing and Replacing the SIM Card
18
Removing and Replacing the Front Housing
19
Removing and Replacing the Transceiver Board, Shielding Case, and Vibrator Module
22
Removing and Replacing the Antenna Module, Microphone
24
Subscriber Identity Module (SIM) and Identification Label
26
Sim
26
Identification
26
Troubleshooting
28
Manual Test Mode
28
Manual Test Mode Commands
28
Troubleshooting Chart
29
Programming: Software Upgrade and Flexing
30
Part Number Charts
31
Exploded View Diagram (W160)
31
Exploded View Parts List (W160)
32
Exploded View Diagram (W156)
33
Exploded View Parts List (W156)
34
Exploded View Diagram (W180)
35
Exploded View Parts List (W180)
36
Exploded View Diagram (W175)
37
Exploded View Parts List (W175)
38
Exploded View Diagram (W161)
39
Exploded View Parts List (W161)
40
Exploded View Diagram (W181)
41
Exploded View Parts List (W181)
42
Accessories
43
