Motorola XT420 Non-Display User Manual

Português
14
BATERIAS E
CARREGADORES
Coldre

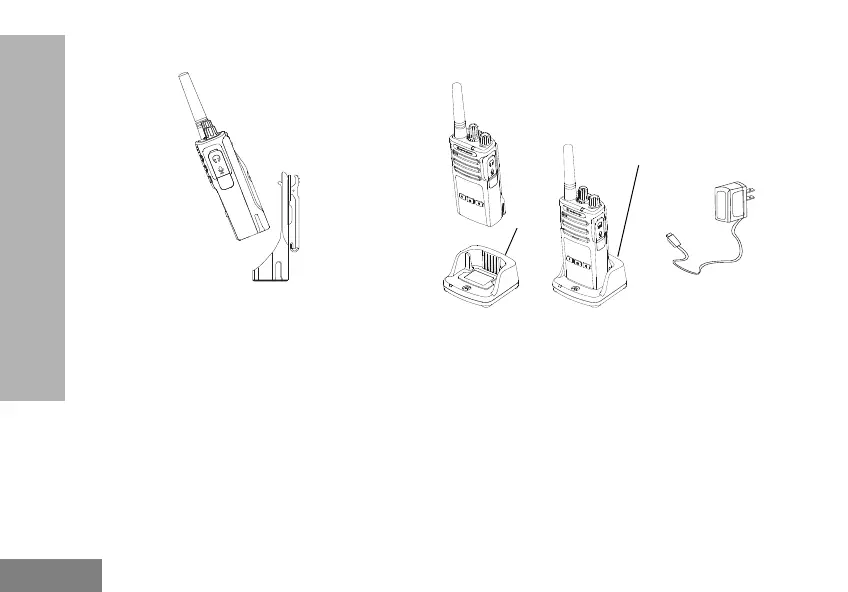

1. Insira o rádio na base do coldre a um ângulo.
Pressione o rádio contra a parte de trás do
coldre até que os ganchos no coldre sejam
inseridos nas reentrâncias superiores da bateria.
2. Para remover solte os ganchos do coldre das
reentrâncias superiores da bateria utilizando a
patilha superior no coldre. Deslize o rádio em
ângulo e remova-o do coldre.
Nota: Para carregar a bateria (instalada no rádio),
coloque-a num carregador ou Carregador
de unidades múltiplas aprovado pela
Motorola Solutions.
Carregar através do monocarregador de
encaixe (SUC)
1. Coloque o carregador sobre uma superfície plana.
2. Introduza a ficha de alimentação a porta lateral
do carregador.
3. Ligue o adaptador de CA a uma tomada elétrica.
4. Introduza o rádio no carregador com o rádio
virado para baixo, conforme apresentado.
Nota: Quando pretender carregar uma bateria
instalada num rádio, DESLIGUE o rádio para
garantir o carregamento completo. Consulte
"Diretrizes de segurança operacional" na
página 7 para obter mais informações.
Tom ad a
do carre-
gador de
encaixe
Carregador de encaixe
Fonte de alimentação
(Transformador)
63M03_A_BRCAN_pt.book Page 14 Monday, November 19, 2018 1:26 PM
