2-16
MS-7033 M-ATX Mainboard

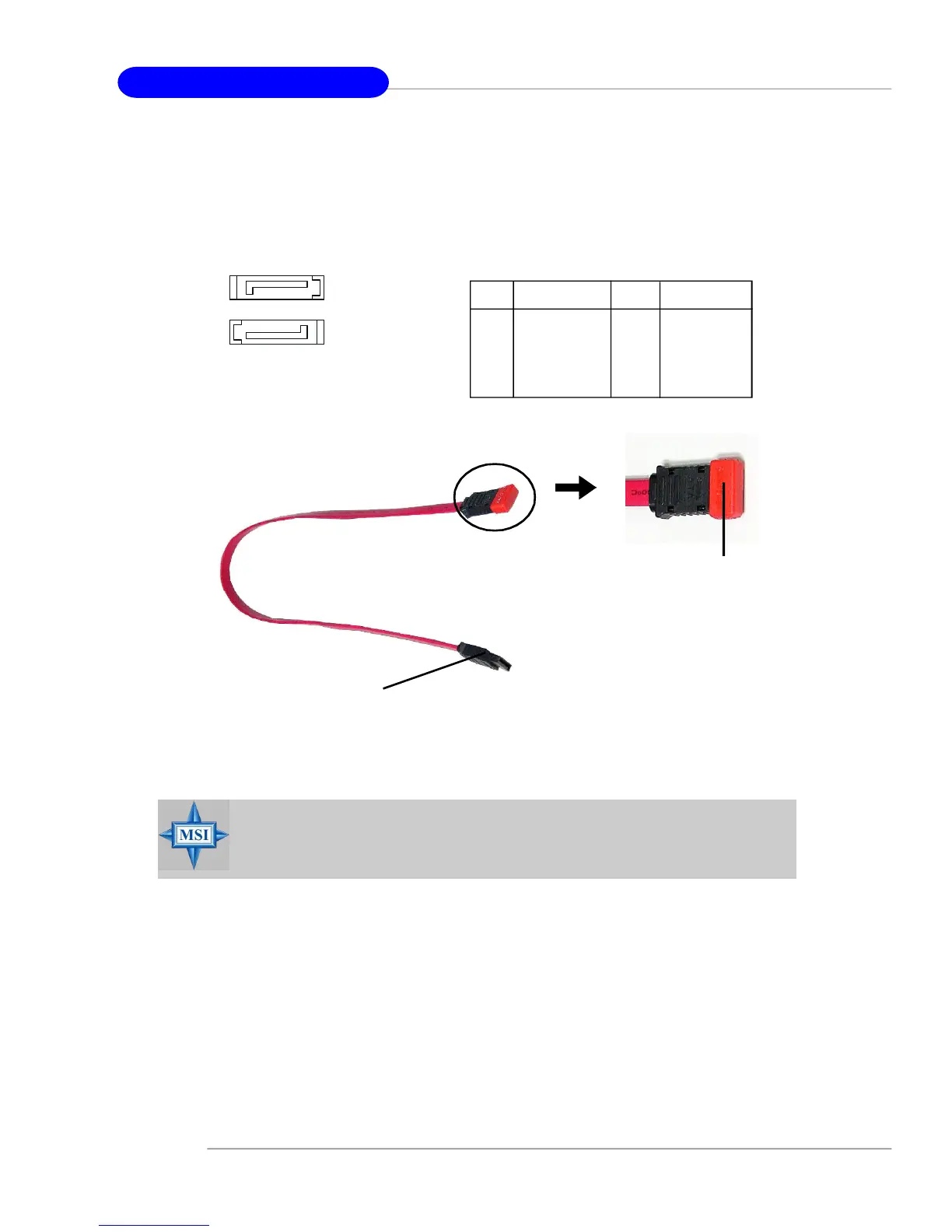

Connect to serial ATA ports
Take out the dust cover and
connect to the hard disk
devices
Serial ATA cable
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
SATA1/SATA2 Pin Definition
7
1
SATA2
SATA1
1
7
Serial ATA HDD Connectors: SATA1 & SATA2
The mainboard provides dual high-speed Serial ATA interface ports. The ports sup-
port 1
st
generation Serial ATA data rates of 150MB/s and are fully compliant with
Serial ATA 1.0 specifications. Each Serial ATA connector can connect to 1 hard disk
drive.
MSI Reminds You...
Please do not fold the serial ATA cable in a 90-degree angle, which will
cause the loss of data during the transmission.
