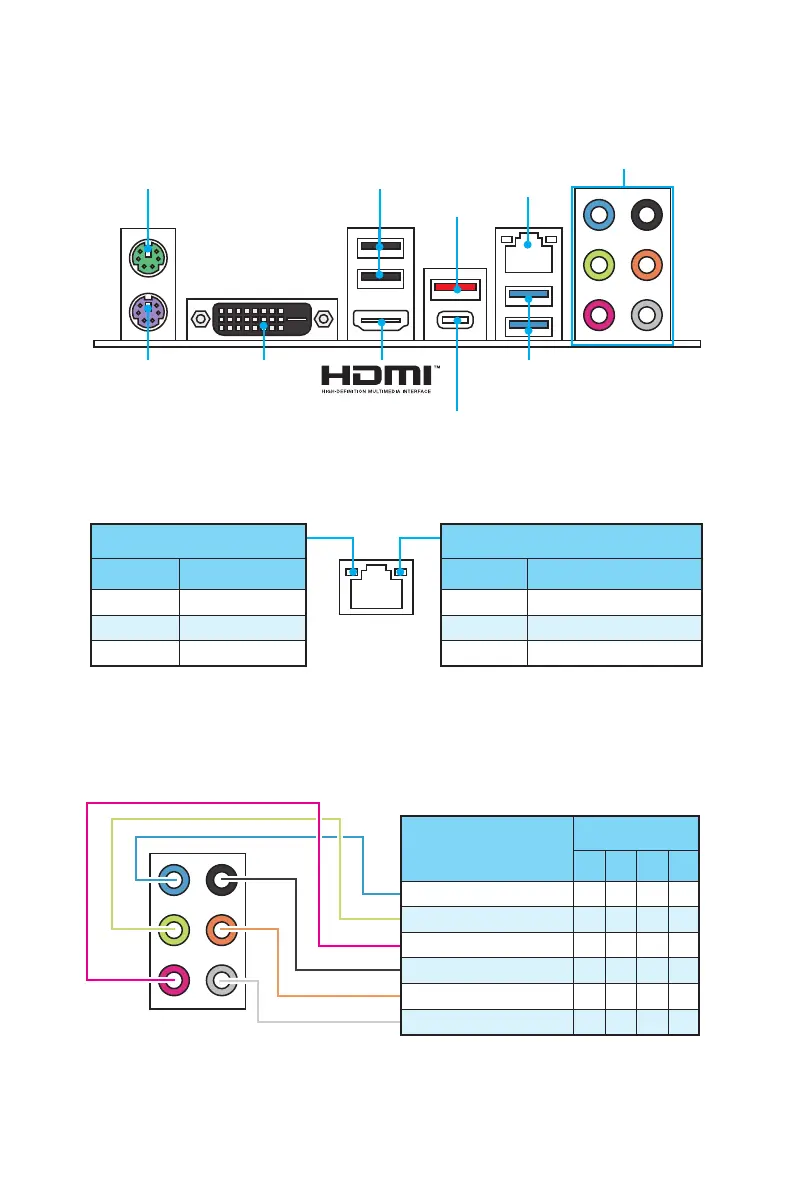

Rear I/O Panel
Rear I/O Panel
PS/2 Mouse
LAN
PS/2 Keyboard
USB 3.1 Gen1
USB 3.1 Gen1
DVI-D
USB 2.0
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
USB 3.1 Gen1 Type-C
Audio Ports
Channel
2 4 6 8
Line In
Line-Out/ Front Speak Out ● ● ● ●
Mic In
Rear Speaker Out ● ● ●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
(●: connected, Blank: empty)

MSI B150M MORTAR ARCTIC Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64 GB
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.1 Gen 1, 6 x USB 2.0
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
RAID Support	RAID 0, 1, 5, 10
Memory Speed	2133 MHz
M.2 Slots	1 x M.2
Audio	Realtek ALC892
LAN	Realtek 8111H
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
