MSI B150M MORTAR ARCTIC User Manual

29
Overview of Components
BAT1

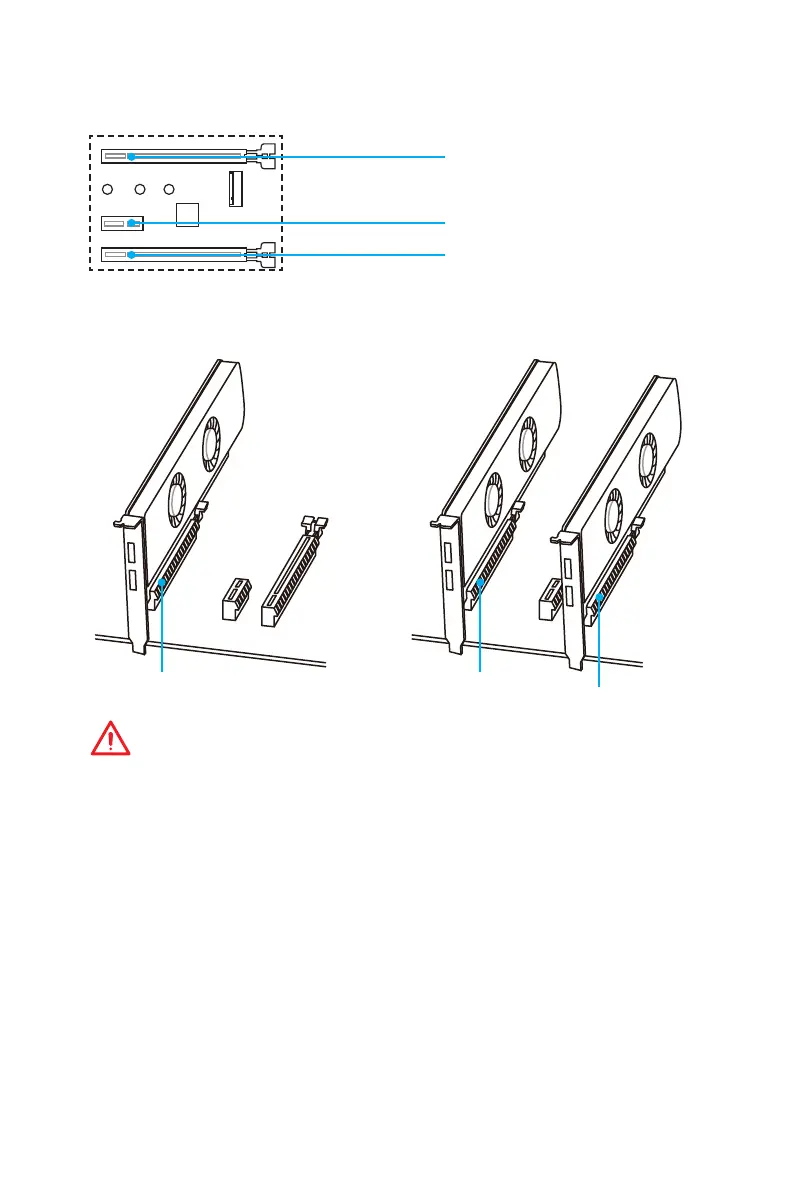

PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16
PCI_E3: PCIe 3.0 x4
PCI_E2: PCIe 3.0 x1
x16 x16
x4
Multiple graphics cards installation recommendation
Important
y For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
y The PCI_E3 slot will only run PCIe 3.0 x2 speed when a M.2 SATA storage is installed
in M.2 slot (M2_1).
y The PCI_E3 slot will disable when a M.2 PCIe module is installed in M.2 slot (M2_1).
y When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.

MSI B150M MORTAR ARCTIC Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64 GB
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.1 Gen 1, 6 x USB 2.0
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
RAID Support	RAID 0, 1, 5, 10
Memory Speed	2133 MHz
M.2 Slots	1 x M.2
Audio	Realtek ALC892
LAN	Realtek 8111H
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
