Overview of Components

M2_2: M.2 slot (Key E)

This slot is used for a M.2 Wi-Fi module. Please follow the steps below to install the

Intel dual band wireless-AC 8260 module (optional).

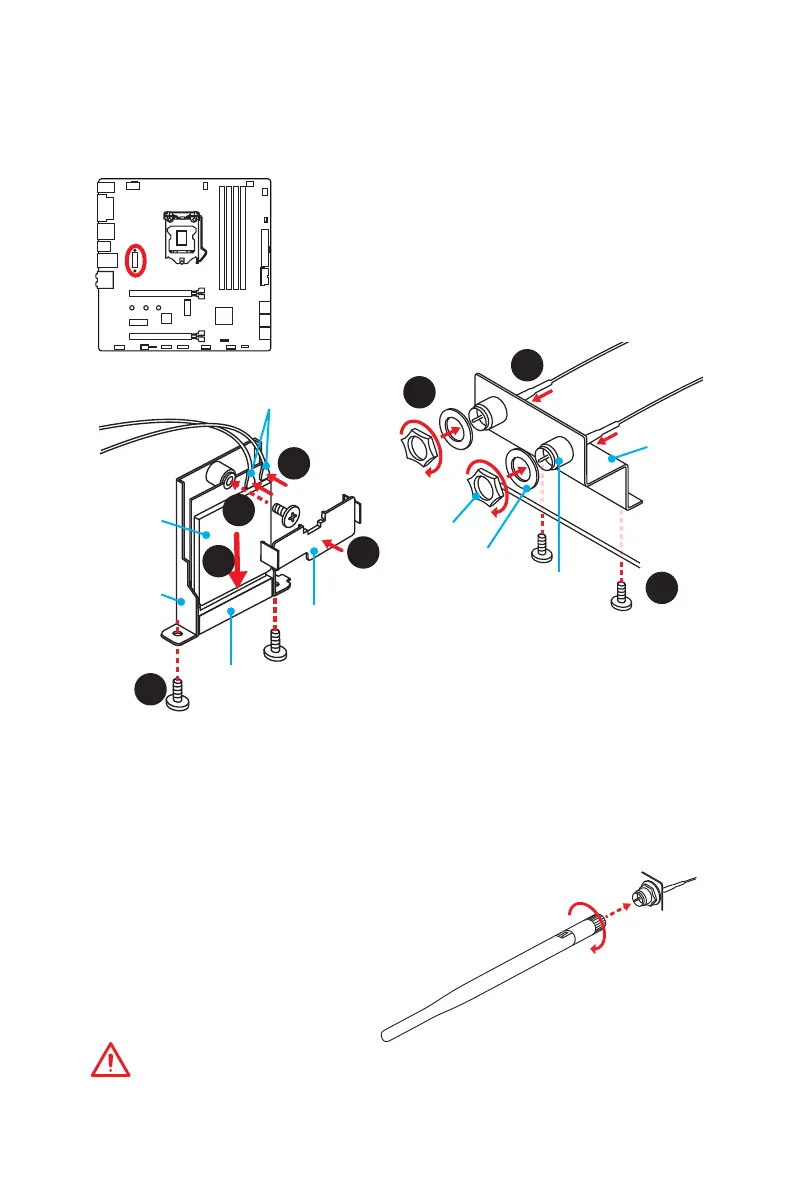

Installing the wireless module

1. Secure the M.2 bracket to the M.2 slot with two screws.

2. Insert the wireless module into the M.2 slot.

3. Secure the wireless module to the M.2 bracket with one screw.

4. Connect the U.FL connectors to the wireless module.

5. Use the U.FL clip to fix the U.FL connectors.

Installing antennas

1. Screw the antennas tight to the RP-SMA connectors.

2. Orient the antennas.

Important

The Wi-Fi/ Bluetooth module installation kit is optional.

Installing antenna cables and antenna bracket

1. Align the RP-SMA connector with the hole in the

antenna bracket.

2. Install the washer and the nut to secure the RP-SMA

connectors on the antenna bracket.

3. Secure the antenna bracket to the back panel of

motherboard with two screws.

Nut

Washer

Antenna

Bracket

RP.SMA Connector

M.2 bracket

U.FL Connector

M.2 Slot

U.FL Clip

Wireless

module
