20

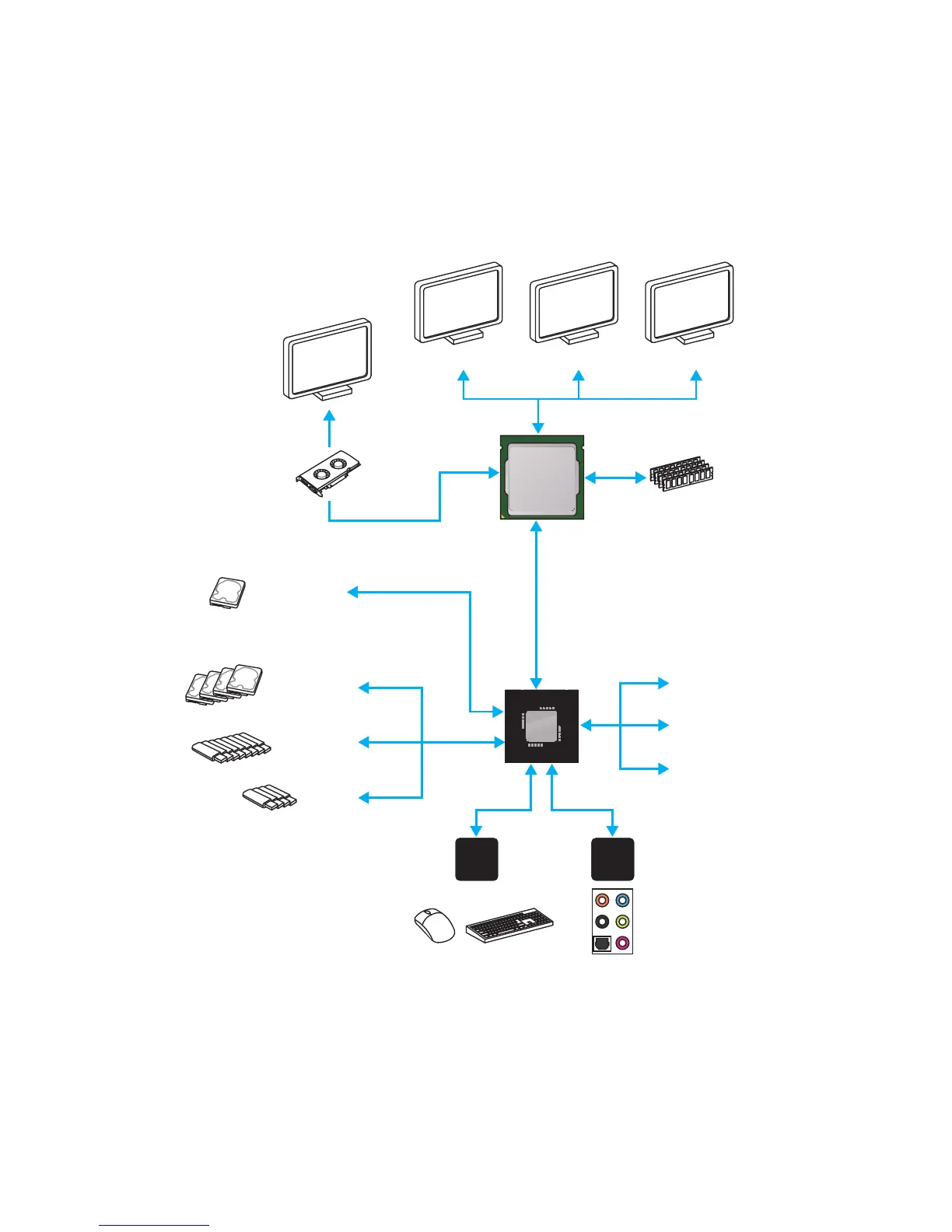

Block Diagram
Block Diagram
LPC Bus
Dual Channel DDR4 Memory
USB 3.1 Gen1
(5 Gbps)
4 x SATA 6Gb/s
USB 2.0
PCI Express Bus
P/S2 Mouse / Keyboard
Audio Jacks
DMI 3.0
Z170/ B150
CPU
NCT6793D
Super I/O
Realtek
ALC892
x2
x1
VGA HDMI DVI-D
PCIe x1 slot
1 x SATA Express
(2 x SATA 6Gb/s)
PCI Express Bus
PCIe x16 slot
x4
x1
PCIe x1 slot

Table of Contents

Other manuals for MSI B150M MORTAR

Preview: Assembly Instruction
Assembly Instruction79 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI B150M MORTAR and is the answer not in the manual?

MSI B150M MORTAR Specifications

General IconGeneral
ChipsetIntel B150
Form FactorMicro ATX
SocketLGA 1151
Memory Slots4 x DIMM
Maximum Memory64 GB
Storage Interfaces6 x SATA 6Gb/s
M.2 Slots1 x M.2
Integrated GraphicsDepends on CPU
Memory Speed2133 MHz
PCIe Slots1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports6 x USB 3.1 Gen 1, 6 x USB 2.0
Video Outputs1 x HDMI, 1 x DVI-D, 1 x VGA
AudioRealtek ALC892
LANRealtek RTL8111H Gigabit LAN
