Overview of Components

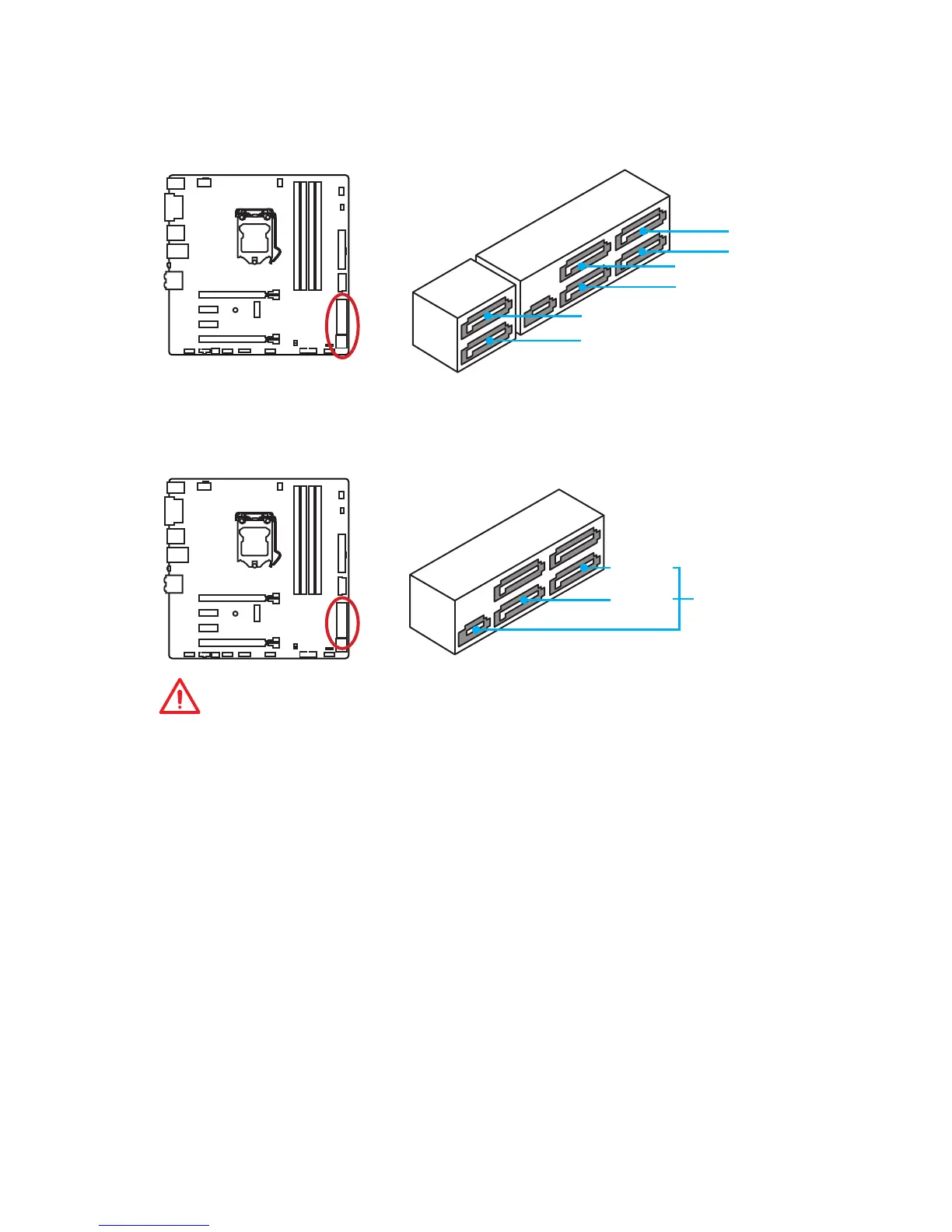

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to

one SATA device.

SATA5

SATA3

SATA2

SATA6

SATA4

SATA1

SE1_21: SATAe Connector

This connector is SATAe (SATA Express) interface port. The SATAe connector can be

used with a single SATAe device or two legacy SATA devices.

SATA1

SATA2

SATAe1

Important

●

Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may

result during transmission otherwise.

●

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.
