MSI B150M MORTAR User Manual

34
Overview of Components

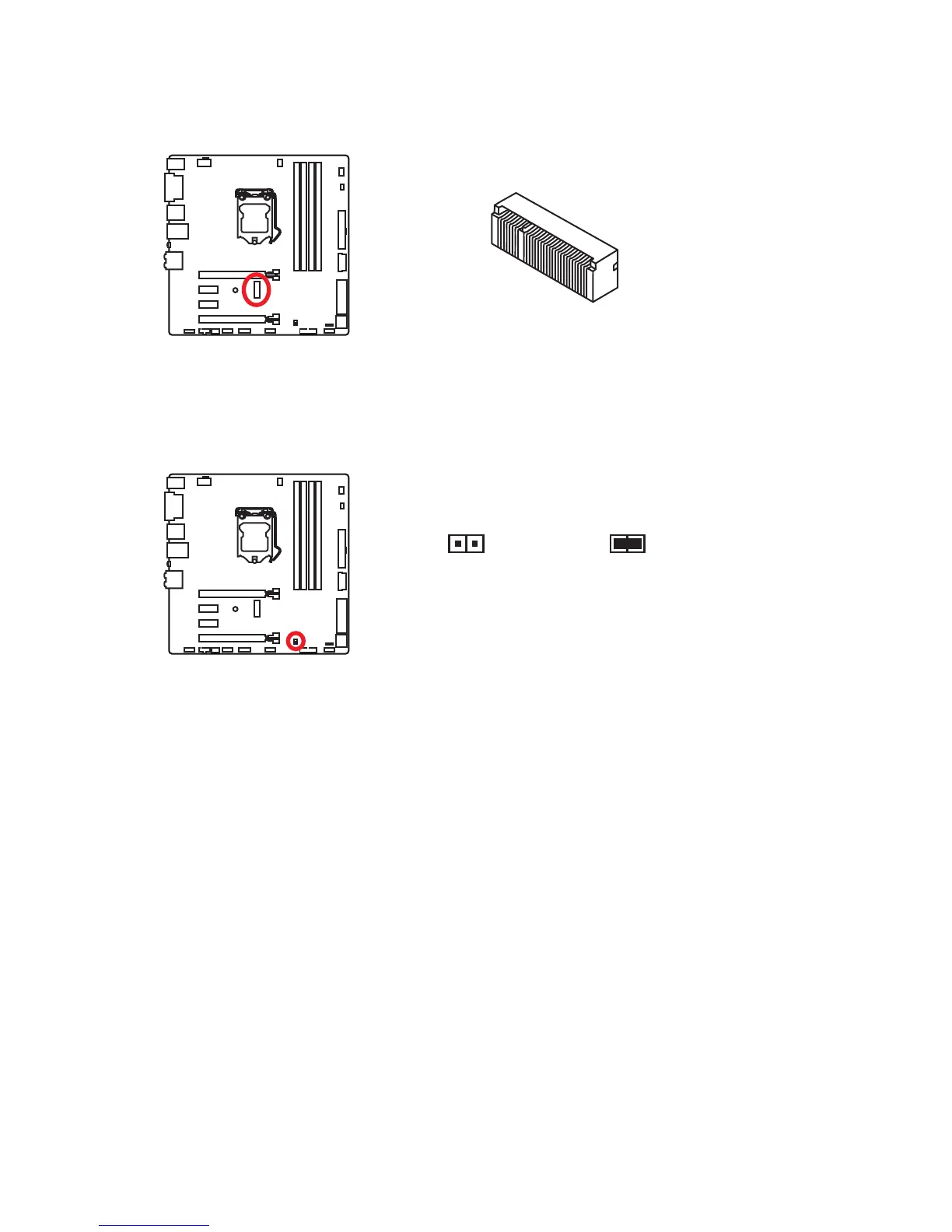

M2-WIFI: M.2 Wi-Fi module slot
This slot is used for a M.2 Wi-Fi module.
JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.

MSI B150M MORTAR Specifications

General

Chipset	Intel B150
Form Factor	Micro ATX
Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64 GB
Storage Interfaces	6 x SATA 6Gb/s
M.2 Slots	1 x M.2
Integrated Graphics	Depends on CPU
Memory Speed	2133 MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports	6 x USB 3.1 Gen 1, 6 x USB 2.0
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
Audio	Realtek ALC892
LAN	Realtek RTL8111H Gigabit LAN
