25
Overview of Components

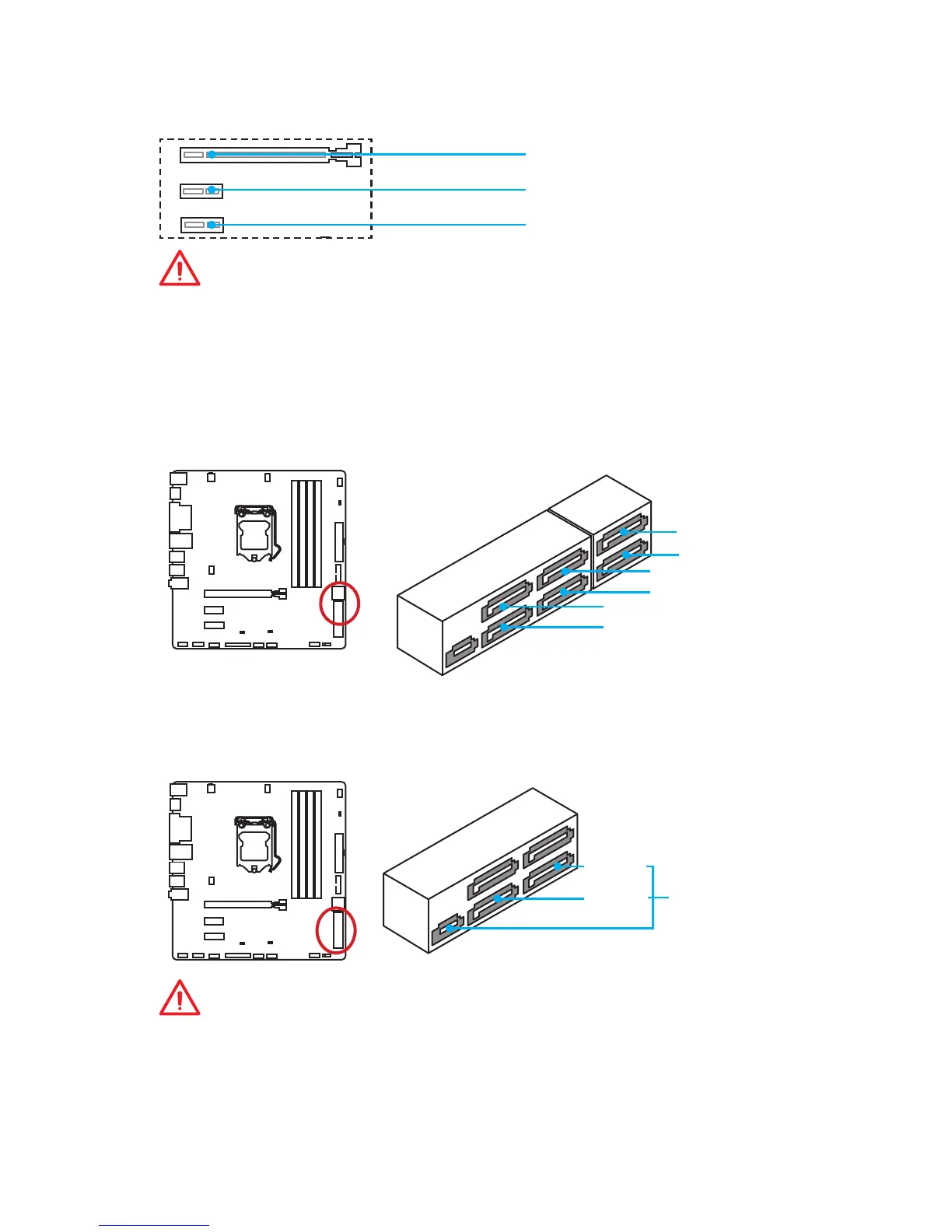

PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 slot
PCI_E2: PCIe 3.0 x1 slot
PCI_E3: PCIe 3.0 x1 slot
Important
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
SATA5
SATA3
SATA2
SATA6
SATA4
SATA1
SE1_21: SATAe Connector
This connector is SATAe (SATA Express) interface port. The SATAe connector can be
used with a single SATAe device or two legacy SATA devices.
SATA1
SATA2
SATAe1
Important
●
Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
●
SATA or SATAe cables have identical plugs on either sides of the cable. However,
it is recommended that the flat connector be connected to the motherboard for
space saving purposes.
