6

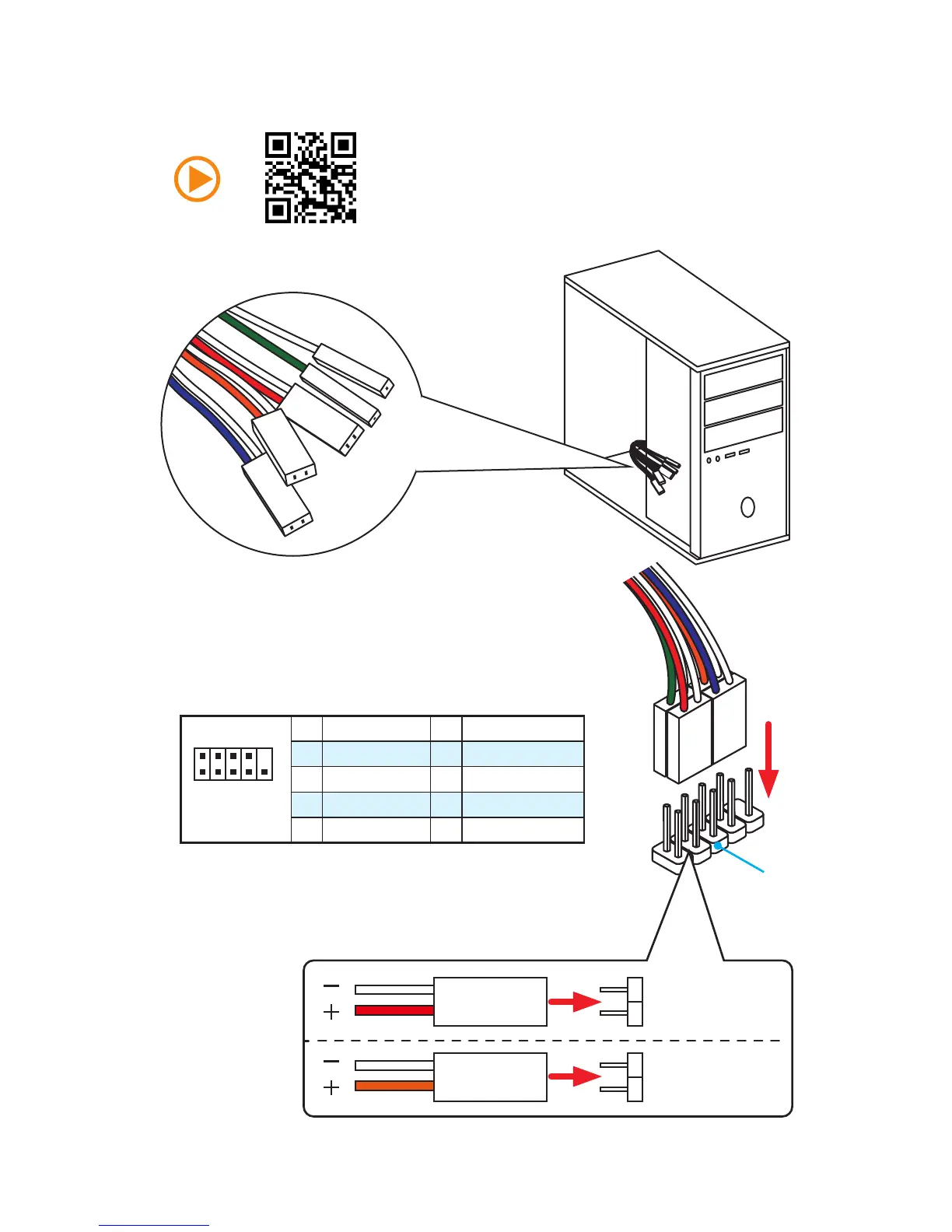

Quick Start
Connecting the F
ront P
anel Header
http://youtu.be/DPELIdVNZUI
1
2
10
9
JFP1
1
HDD LED +
2
Power LED +
3
HDD LED -
4
Power LED -
5
Reset Switch
6
Power Switch
7
Reset Switch
8
Power Switch
9
Reserved
10
No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
5
7
Table of Contents
Unpacking
1
Safety Information
2
Quick Start
3
Preparing Tools and Components
3
Installing a Processor
4
Installing DDR4 Memory
5
Connecting the Front Panel Header
6
Installing the Motherboard
7
Installing SATA Drives
8
Installing a Graphics Card
9
Connecting Peripheral Devices
10
Connecting the Power Connectors
11
Power on
12
Table of Contents
13
Specifications
15
Block Diagram
18
Rear I/O Panel
19
LAN Port LED Status Table
19
Realtek HD Audio Manager
19
Overview of Components
21
CPU Socket
23
DIMM Slots
24
PCI_E1~3: Pcie Expansion Slots
25
SATA1~6: SATA 6Gb/S Connectors
25
SE1_21: Satae Connector
25
JPWR1~2: Power Connectors
26
JFP1, JFP2: Front Panel Connectors
26
JUSB1: USB 3.1 Gen1 Connector
27
JUSB2~3: USB 2.0 Connectors
27
JAUD1: Front Audio Connector
28
JTPM1: TPM Module Connector
28
JCOM1: Serial Port Connector
28
CPUFAN1,SYSFAN1~2: Fan Connectors
29
JLPT1: Parallel Port Connector
30
JBAT1: Clear CMOS (Reset BIOS) Jumper
30
JCI1: Chassis Intrusion Connector
31
EZ Debug LED: Debug LED Indicators
31
BIOS Setup
32
Entering BIOS Setup
32
Function Key
32
Resetting BIOS
33
Updating BIOS
33
EZ Mode
34
Advanced Mode
36
Advanced
37
Settings
37
Boot
43
Security
44
Save & Exit
45
Oc
46
M-Flash
52
Oc Profile
53
Hardware Monitor
54
Software Description
55
Installing Windows ® 7/ 8.1/ 10
55
Installing Drivers
55
Installing Utilities
55
Command Center
56
Cpu Frequency
56
Gadget Mode
59
Live Update 6
60
Updating the System
60
Total Installer
61
M-Cloud
62
Ramdisk
65
Network Genie
66
Intel ® Extreme Tuning Utility
68
Intel ® Small Business Advantage
69
Help Button
69
Password Settings
69
RAID Configuration (Optional)
70
Using Intel ® Rapid Storage Technology Option ROM
70
Delete Raid Volume
72
Degraded RAID Array
73
Recovery Volume Options
73
Missing Hard Drive Member
73
Failed Hard Drive Member
74
Power off
74
Troubleshooting
75
Regulatory Notices
76
Battery Information
76
Chemical Substances Information
76
Technical Support
79
