MSI H510M PRO-E User Manual

12


This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection


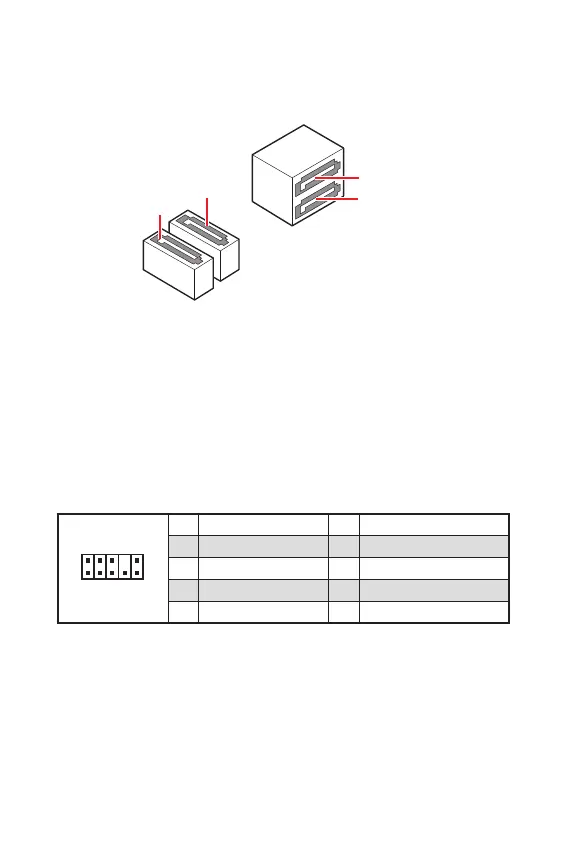

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA3
SATA4
SATA1
SATA2


 Please do not fold the SATA cable at a 90-degree angle. Data loss may result
during transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is

saving purposes.

MSI H510M PRO-E Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H510
CPU Socket	LGA 1200
Memory Slots	2 x DIMM
Max Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x VGA
Storage Interface	4 x SATA 6Gb/s, 1 x M.2
USB Ports	6 x USB 2.0, 4 x USB 3.2 Gen 1
Audio	Realtek ALC897
Memory Speed	DDR4 3200(OC)/2933/2666/2400/2133 MHz
