MSI H510M PRO-E User Manual

12
󶵪󱠁󴚯󸷇
󱶜󶹌󹰭󹴜󳲝󲁅
󴨠󳲝󲁅󱯬󸜡󳞄󸶚󳲝󱶜󶹌󹬻󴍇󱚗󹰭󹴜󳳧󲷔
1
2 10
9

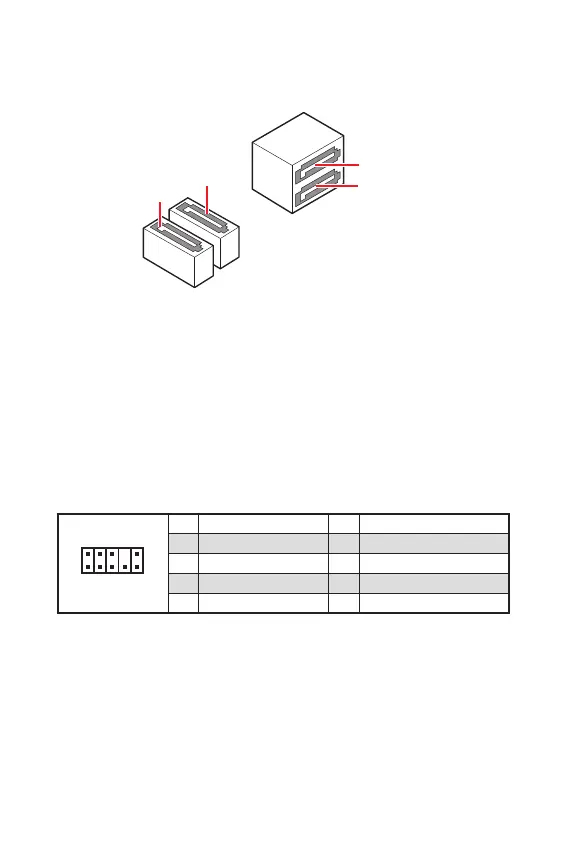

1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
󳲝󲁅
󸶓󱝬󳲝󲁅󴄡󱛒󸂈󱟁󹬻󳲝󲁅󴬊󱛅󳲝󲁅󲁗󱟨󸶚󳲝󱚋󱛅󱛒󸂈󸜧󲢮
SATA3
SATA4
SATA1
SATA2

󴳈󳠵
 󸝠󱻅󲽀󱛒󸂈󳿌󳰼󶵥󲼪󳫸󳨑󳐂󲂨󱵑󽚟󱠿󸳹󸵦󶎴󱛉󲁗󷅮󱠸󱴤󵣅󳿌󳰼󱚻󲤃
 󳿌󳰼󶵥󵷜󱚽󶖒󴊇󵺕󲁾󵷜󳳧󲁅󽚟󵑐󶾀󽚟󱛝󱝏󷓀󵺥󶒃󹢦󳒮󸜗󸶚󳲝󳩤󳎦󳲝󲁅󶖒󲖬󱛞󴍇
󱚗

MSI H510M PRO-E Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H510
CPU Socket	LGA 1200
Memory Slots	2 x DIMM
Max Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x VGA
Storage Interface	4 x SATA 6Gb/s, 1 x M.2
USB Ports	6 x USB 2.0, 4 x USB 3.2 Gen 1
Audio	Realtek ALC897
Memory Speed	DDR4 3200(OC)/2933/2666/2400/2133 MHz
