MSI H510M PRO-E User Manual

7
 

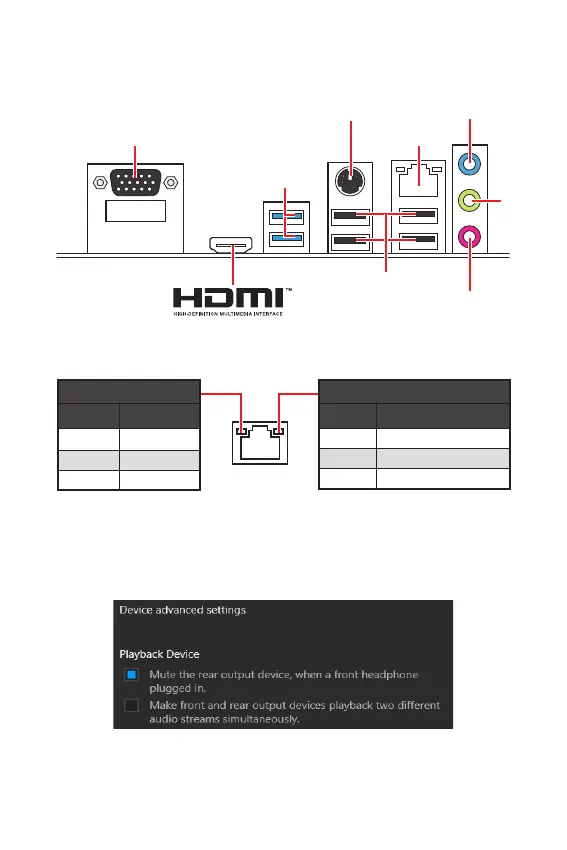

PS/2 Mouse/
Keyboard
VGA

Status 
Off No link
Yellow Linked
Blinking Data activity

Status 
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 1 Gbps connection


To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
 Click on the  to open the dialog
below.
 Select .
 Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.

USB 2.0 Type-A
Line-in
Line-out
MIC
1 Gbps LAN
USB 3.2 Gen 1
5Gbps Type-A

MSI H510M PRO-E Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H510
CPU Socket	LGA 1200
Memory Slots	2 x DIMM
Max Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x VGA
Storage Interface	4 x SATA 6Gb/s, 1 x M.2
USB Ports	6 x USB 2.0, 4 x USB 3.2 Gen 1
Audio	Realtek ALC897
Memory Speed	DDR4 3200(OC)/2933/2666/2400/2133 MHz
