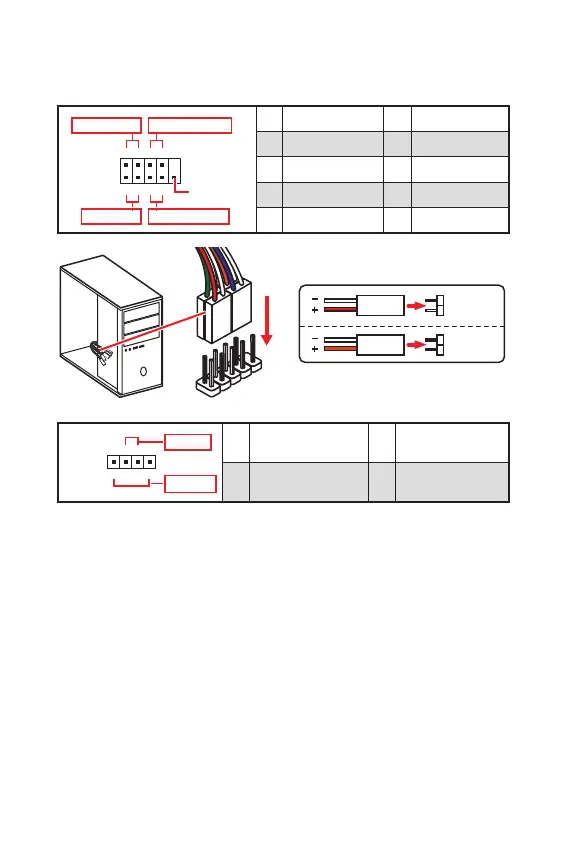

These connectors connect to the switches and LEDs on the front panel.

2 10

Power LED

HDD LED Reset Switch

Reserved

Power Switch

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

JFP2

Speaker

Buzzer

1 Speaker - 2 Buzzer +

3 Buzzer - 4 Speaker +

HDD LED

RESET SW

HDD LED

HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

JFP1
