MSI H510M PRO-E User Manual

15
󶵪󱠁󴚯󸷇 󶵪󱠁󴚯󸷇
󳲝󲁅
󴨠󳲝󲁅󱯬󸜡󳞄󲖬󱶜󶹌󹬻󴍇󱚗󴌟󸶚󳲝󶖒󲁅
1

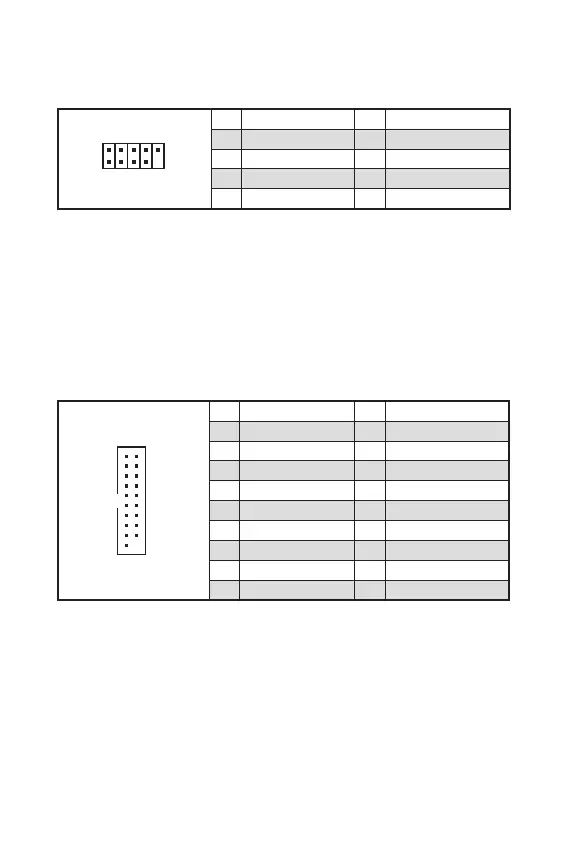

10 11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 Ground 20 No Pin

󴳈󳠵
󸝠󴳈󳠵󽚟󵭳󴽦󲅈󳲝󲖵󹛳󷆧󳘗󹴆󴨟󶃥󸶚󳲝󱟨󸼽󱰁󲁗󷅮󵷜󳰤󲗥
󳲝󲁅
󴨠󳲝󲁅󱯬󸜡󳞄󲖬󱶜󶹌󹬻󴍇󱚗󴌟󸶚󳲝󶖒󲁅

󴳈󳠵
 󸝠󴳈󳠵󽚟󲅈󳲝󲖵󹛳󷆧󳘗󹴆󴨟󶃥󸶚󳲝󱟨󸼽󱰁󲁗󷅮󵷜󳰤󲗥
 󱛝󱝏󲽀󳞄󵷜󽚟󲅈󸸵󸵦󶖒󲁅󸶗󸂈󱯲󵭳󽚟󸝠󲹁󸅗󲹮
󵭡󶎴󳏜
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC

MSI H510M PRO-E Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H510
CPU Socket	LGA 1200
Memory Slots	2 x DIMM
Max Memory	64 GB
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x VGA
Storage Interface	4 x SATA 6Gb/s, 1 x M.2
USB Ports	6 x USB 2.0, 4 x USB 3.2 Gen 1
Audio	Realtek ALC897
Memory Speed	DDR4 3200(OC)/2933/2666/2400/2133 MHz
