MSI MPG Z690 CARBON WIFI User Manual

13

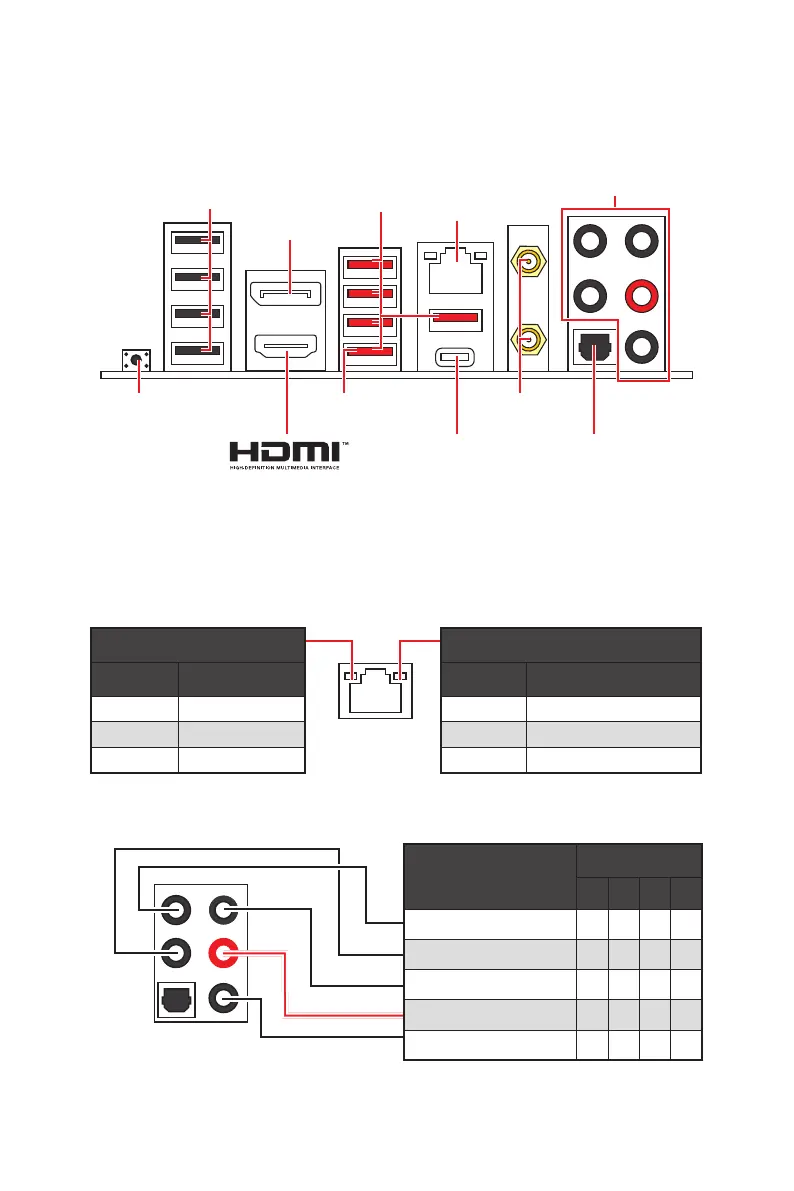

Rear I/O Panel
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
Rear I/O Panel
∙ 
Button.
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
USB 3.2 Gen 2x2

Flash BIOS
Button
2.5Gbps
LAN

connectors
USB 2.0

USB 3.2
Gen 2
(10Gbps)

DisplayPort
Audio Ports
Optical

Flash BIOS
port

MSI MPG Z690 CARBON WIFI Specifications

General

Form Factor	atx
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr5
Memory Speeds	6666
SATA Connectors	6x sata 6g
Wireless Standard	ax
Wireless Networking Standard	wi-fi 6e
Wireless Connectivity	bluetooth, wi-fi
USB Ports	6 x usb-a 3.2, 1 x usb-c 3.2, 4 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	8
M.2 Slots	5

Weight and Dimensions

Width	243.84 millimeters
