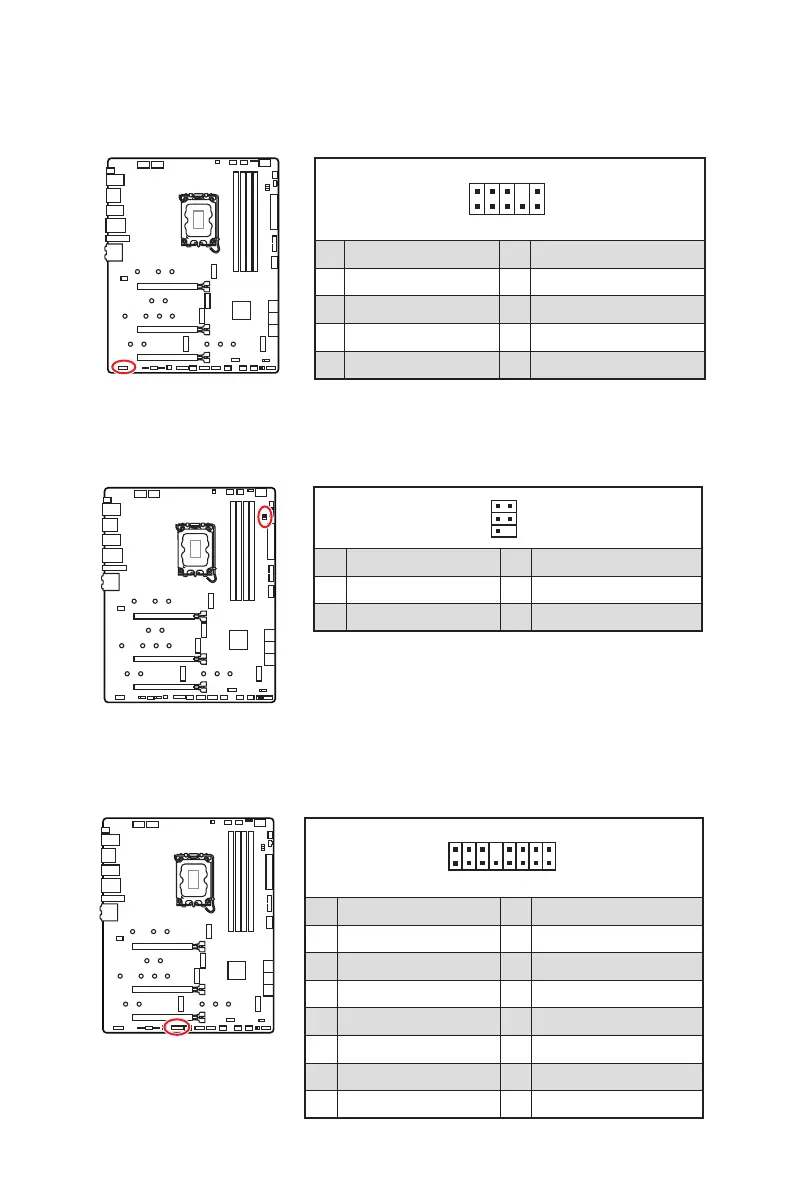

Übersicht der Komponenten

JDASH1: Tuning Controller-Anschluss



1 No Pin 2 NC

3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M

5 VCC5 6 Ground

JTBT1: Anschluss für Thunderbolt-Erweiterungskarte



Erweiterungskarte anschließen.

2 16

1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ

3  4 TBT_S0IX_ENTRY_ACK

5  6 TBT_PSON_OVERRIDE_N

7  8 No Pin

9 Ground 10 SMBCLK_VSB

11  12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15  16 

JAUD1: Audioanschluss des Frontpanels

Dieser Anschluss ermöglicht den Anschluss von Audiobuchsen eines Frontpanels.

2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection

MSI MPG Z690 CARBON WIFI Specifications

General

Form Factor	atx
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr5
Memory Speeds	6666
SATA Connectors	6x sata 6g
Wireless Standard	ax
Wireless Networking Standard	wi-fi 6e
Wireless Connectivity	bluetooth, wi-fi
USB Ports	6 x usb-a 3.2, 1 x usb-c 3.2, 4 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	8
M.2 Slots	5
