MSI MPG Z690 CARBON WIFI User Manual

28
Overview of Components

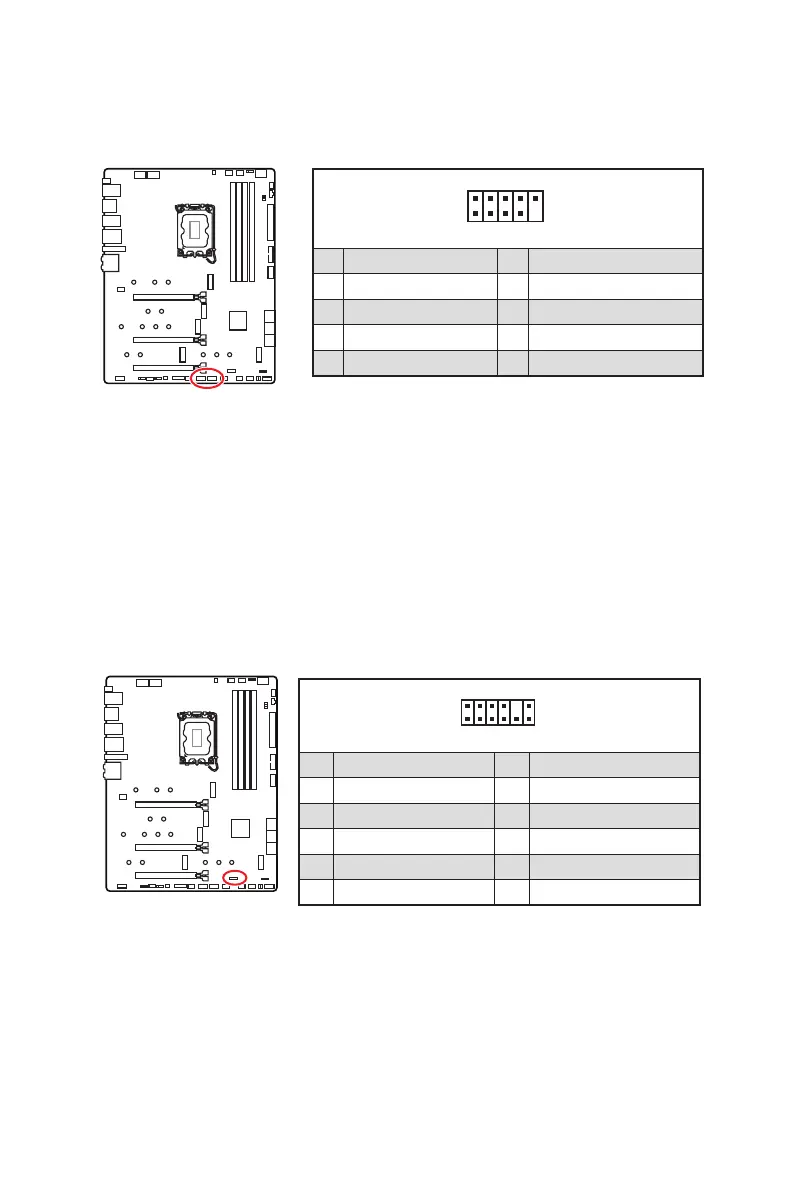

JUSB1~2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3  4 
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
⚠
Important
∙ Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
∙ In order to recharge your iPad, iPhone and iPod through USB ports, please install
MSI® Center utility.
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
1
2 12
11
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI Data) 4 Master Out Slave In (SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request

MSI MPG Z690 CARBON WIFI Specifications

General

Form Factor	atx
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr5
Memory Speeds	6666
SATA Connectors	6x sata 6g
Wireless Standard	ax
Wireless Networking Standard	wi-fi 6e
Wireless Connectivity	bluetooth, wi-fi
USB Ports	6 x usb-a 3.2, 1 x usb-c 3.2, 4 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	8
M.2 Slots	5

Weight and Dimensions

Width	243.84 millimeters
