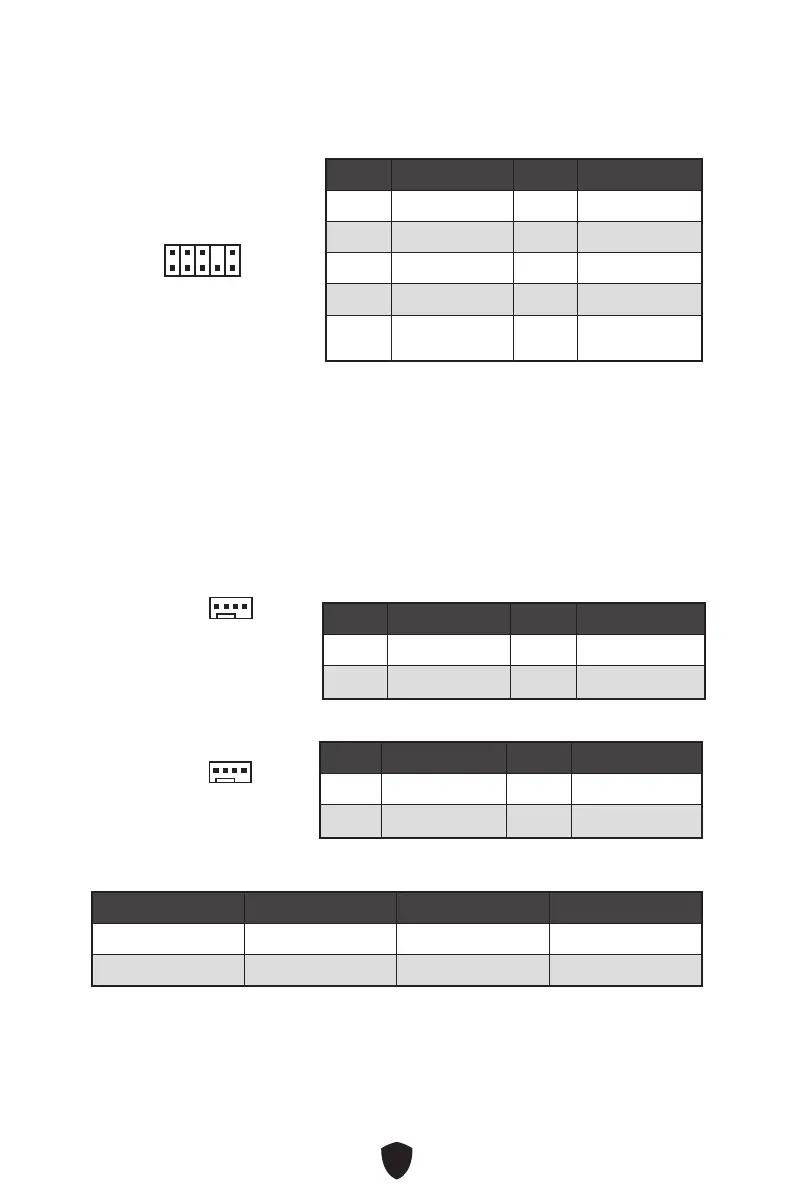

MSI PRO H610M-G User Manual

14


1
2 10
9
   
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10
Head Phone
Detection








1

PWM
   
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1

   
1 Ground 2 Voltage Control
3 Sense 4 NC

   
CPU_FAN1   
SYS_FAN1   


BIOS > HARDWARE MONITOR


MSI PRO H610M-G Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H610
Socket	LGA 1700
Memory Slots	2 x DIMM
Maximum Memory	64GB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
SATA Ports	4 x SATA 6Gb/s
Video Outputs	1 x HDMI, 1 x VGA
Memory Speed	DDR4 3200 MHz
M.2 Slots	1 x M.2
Audio	Realtek ALC897
LAN	Realtek RTL8111H Gigabit LAN
USB Ports	4 x USB 3.2 Gen 1, 6 x USB 2.0
