MSI PRO H610M-G User Manual

16







   

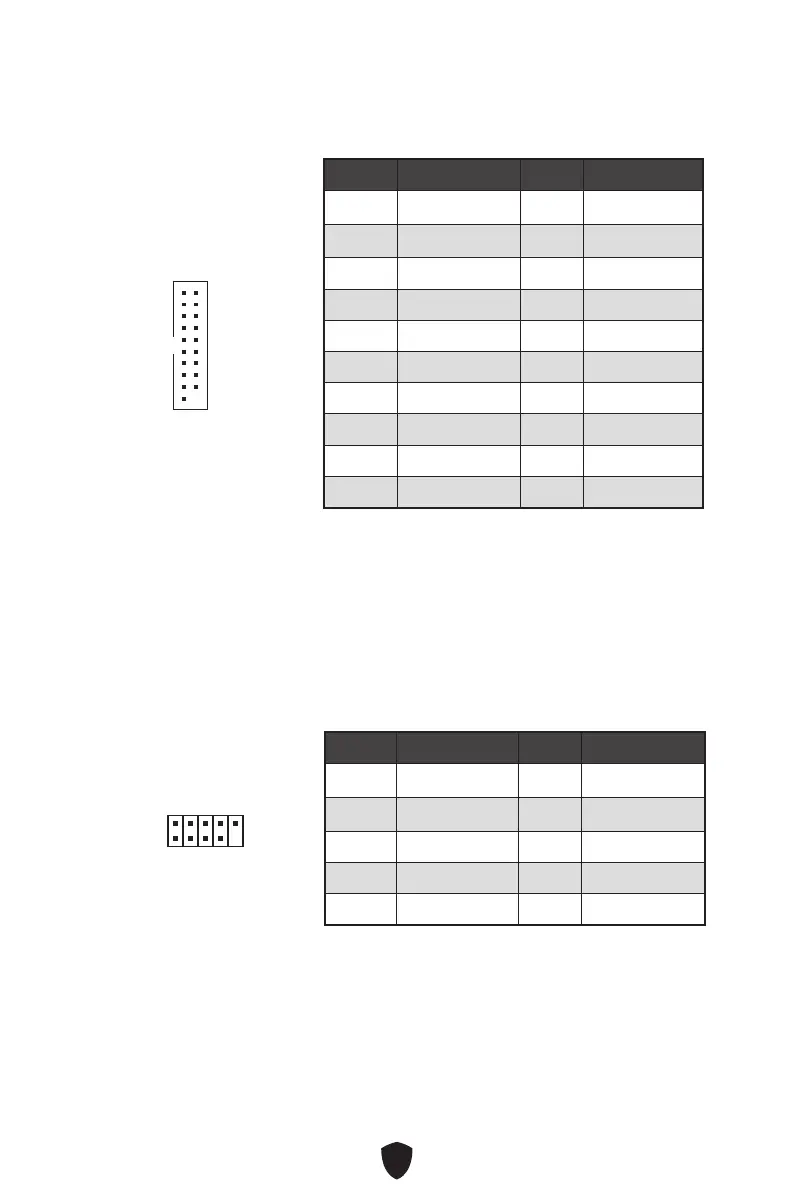

1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20





 

 

   
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9

MSI PRO H610M-G Specifications

General

Form Factor	Micro-ATX
Chipset	Intel H610
Socket	LGA 1700
Memory Slots	2 x DIMM
Maximum Memory	64GB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
SATA Ports	4 x SATA 6Gb/s
Video Outputs	1 x HDMI, 1 x VGA
Memory Speed	DDR4 3200 MHz
M.2 Slots	1 x M.2
Audio	Realtek ALC897
LAN	Realtek RTL8111H Gigabit LAN
USB Ports	4 x USB 3.2 Gen 1, 6 x USB 2.0
