MSI Z170A MPOWER GAMING TITANIUM User Manual

38
Overview of Components
24
131
12
JPWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
JPWR2
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

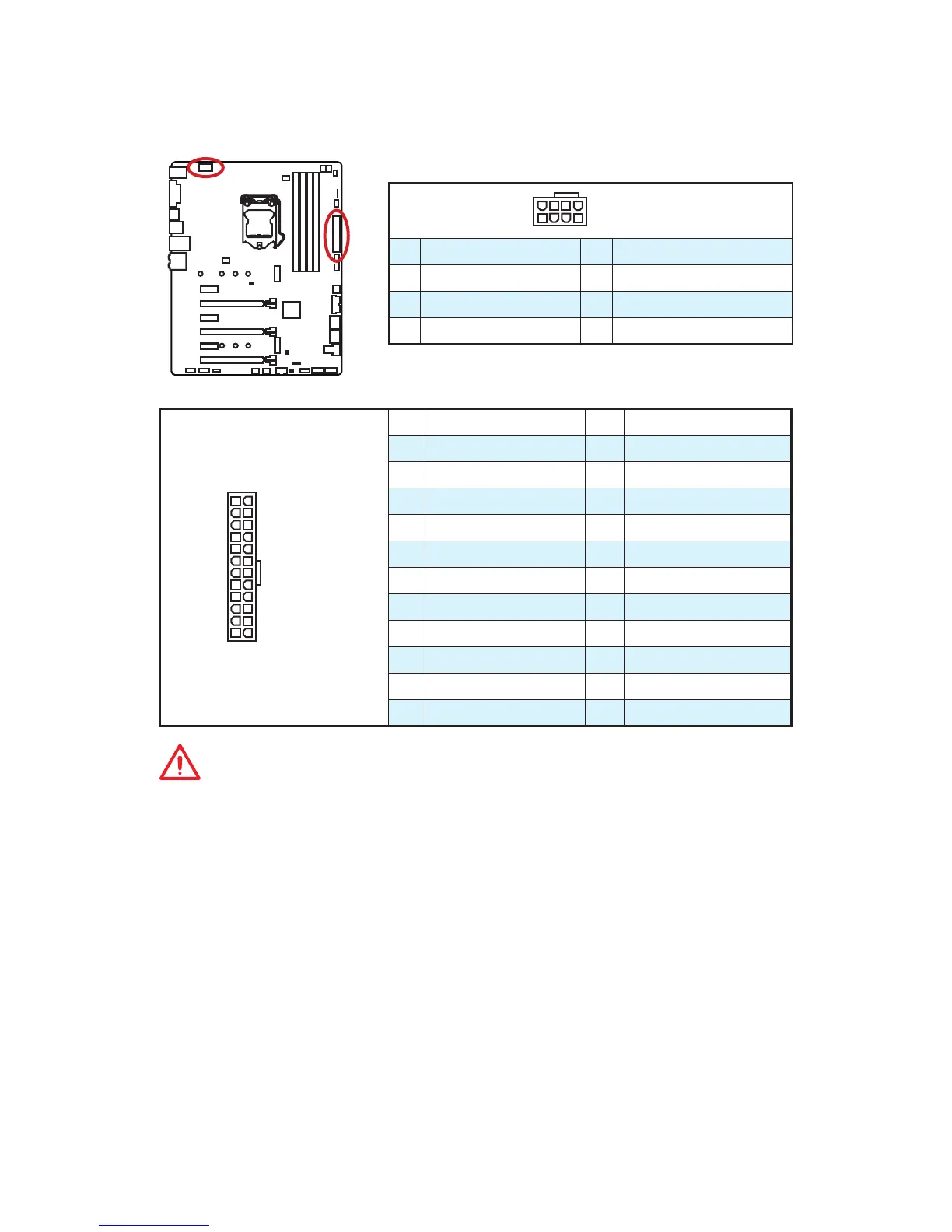

JPWR1~2: Power Connectors
These connectors allow you to connect an ATX power supply.

MSI Z170A MPOWER GAMING TITANIUM Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Max Memory	64 GB
Form Factor	ATX
USB 3.1 Gen1 (Rear)	4
USB 2.0 (Rear)	2
Audio	Realtek ALC1150
LAN	Intel I219-V Gigabit LAN
PCIe x16 Slots	3
PCIe x1 Slots	3
Memory Slots	4
Multi-GPU Support	AMD 3-Way CrossFireX, NVIDIA 2-Way SLI
SATA Ports	6
M.2 Slots	2
RAID Support	0, 1, 5, 10
Memory Speed	2133/2400/2600/2800/3000/3200 MHz (OC)
USB 3.1 Ports	1 (Type-C), 1 (Type-A)
