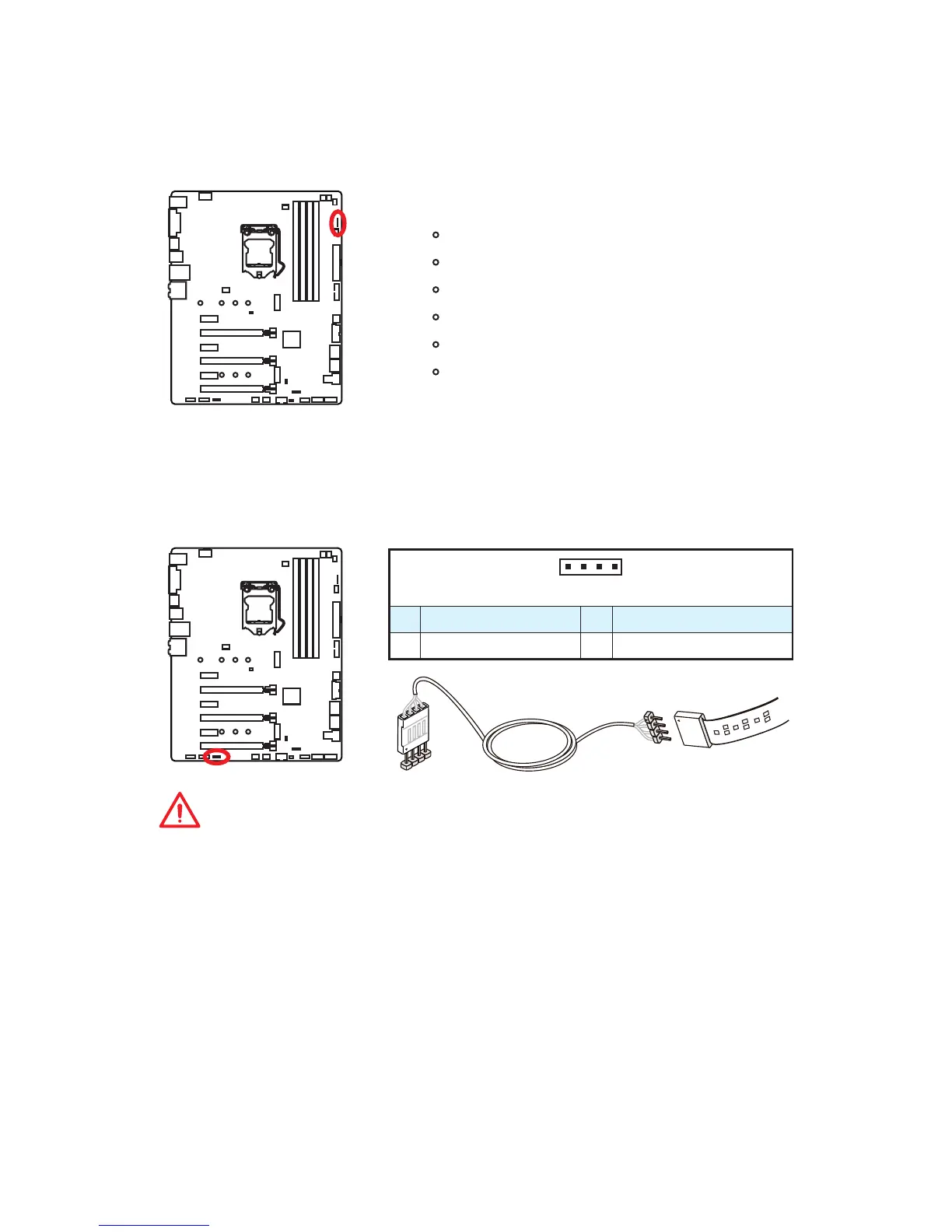

JLED1: RGB LED connector

This connector allows you to connect the RGB LED strip.

Important

This connector supports 5050 RGB multi-color LED strips (12V/G/R/B) within 2

meters.

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

Please use the LED Effect of GAMING APP to adjust, calibrate and control the LED

light, refer to the Software section for details.

1 +12V 2 G

3 R 4 B

FV1: V-Check Points

These voltage-check points are used to measure the current system voltages. A

multimeter (not included) will be required to check voltages.

VCCSA

VCCIO

DDR

GPU

CPU

PCH
