BIOS Setup

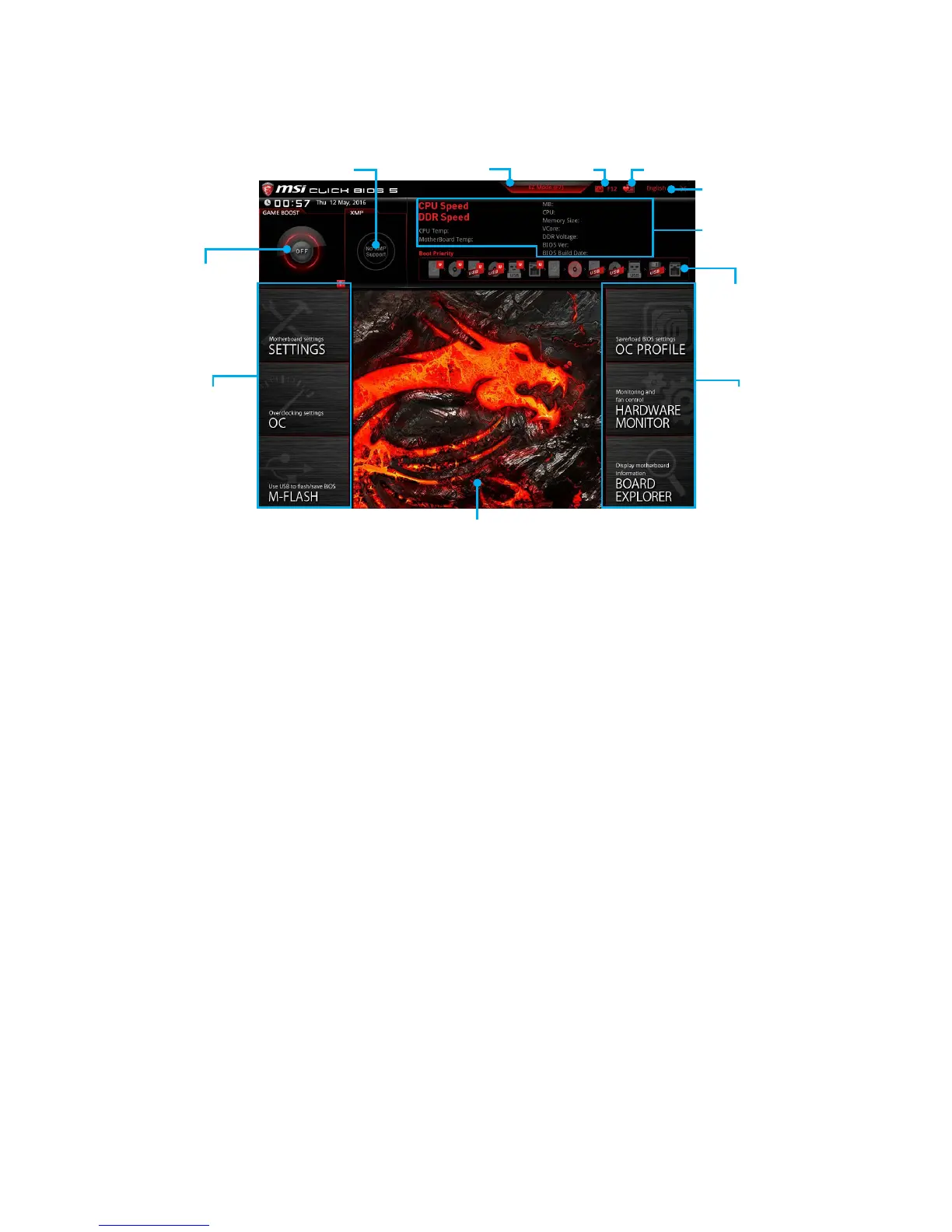

Advanced Mode
Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.
GAME BOOST
switch
XMP switch
System
information
Boot device
priority bar
BIOS menu
selection
Language
Favorites ScreenshotSetup Mode switch
Menu display
BIOS menu
selection
y GAME BOOST switch / XMP switch/ Setup Mode switch/ Screenshot/ Favorites/
Language/ System information/ Boot device priority bar - please refer to the
descriptions of EZ Mode Overview section.
y BIOS menu selection - the following options are available:
 SETTINGS - allows you to specify the parameters for chipset and boot devices.
 OC - allows you to adjust the frequency and voltage. Increasing the frequency may
get better performance.
 M-FLASH - provides the way to update BIOS with a USB flash drive.
 OC PROFILE - allows you to manage overclocking profiles.
 HARDWARE MONITOR - allows you to set the speeds of fans and monitor voltages
of system.
 BOARD EXPLORER - provides the information of installed devices on this
motherboard.
y Menu display - provides BIOS setting items and information to be configured.

MSI Z170A MPOWER GAMING TITANIUM Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Max Memory	64 GB
Form Factor	ATX
USB 3.1 Gen1 (Rear)	4
USB 2.0 (Rear)	2
Audio	Realtek ALC1150
LAN	Intel I219-V Gigabit LAN
PCIe x16 Slots	3
PCIe x1 Slots	3
Memory Slots	4
Multi-GPU Support	AMD 3-Way CrossFireX, NVIDIA 2-Way SLI
SATA Ports	6
M.2 Slots	2
RAID Support	0, 1, 5, 10
Memory Speed	2133/2400/2600/2800/3000/3200 MHz (OC)
USB 3.1 Ports	1 (Type-C), 1 (Type-A)
