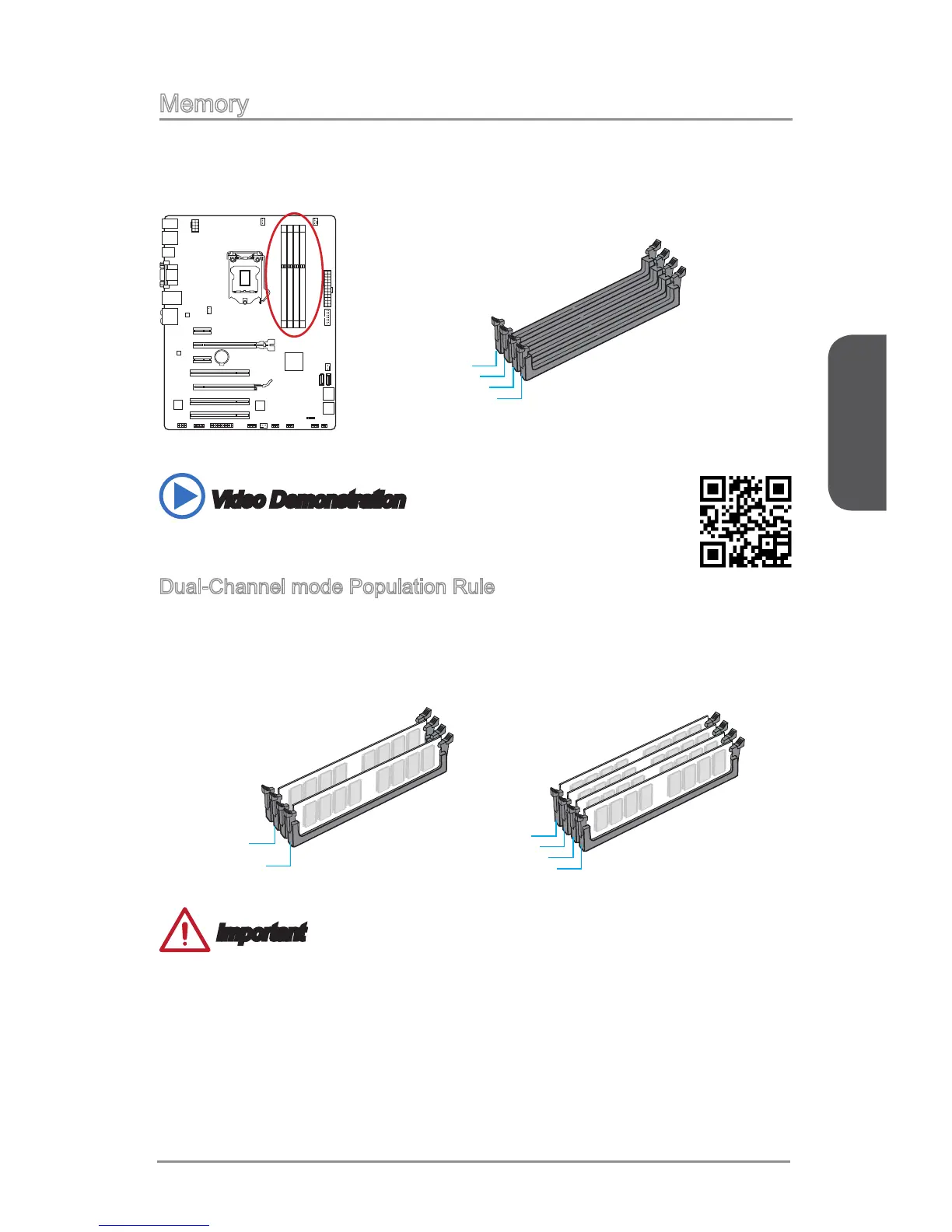

Memory
These DIMM slots are used for installing memory modules. For more information on
compatible components, please visit http://www.msi.com/service/test-report/
DIM M1 DIM M2 DIM M3 DIM M4
DIMM1
DIMM2
DIMM3
DIMM4
Video Demonstration
Watch the video to learn how to install memories at the address below.
http://youtu.be/76yLtJaKlCQ
Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two
data bus channels simultaneously. Enabling Dual-Channel mode can enhance system
performance. The following illustrations explain the population rules for Dual-Channel
mode.
DIMM2
DIMM4
DIMM1
DIMM2
DIMM3
DIMM4
Important
DDR3 memory modules are not interchangeable with DDR2, and the DDR3
standard is not backward compatible. Always install DDR3 memory modules in
DDR3 DIMM slots.
To ensure system stability, memory modules must be of the same type and density
in Dual-Channel mode.
Due to chipset resource usage, the system will only detect up to 31+ GB of memory
(not full 32 GB) when all DIMM slots have 8GB memory modules installed.
•
•
•

MSI Z87-G43 GAMING Specifications

General

Chipset	Intel Z87
Form Factor	ATX
CPU Socket	LGA 1150
Maximum Memory	32GB
PCI Express x16 Slots	2
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	3
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0, 8 x USB 2.0
Multi-GPU Support	AMD CrossFireX
Memory Slots	4
Memory Standard	DDR3 1066/1333/1600
Audio	Realtek ALC1150
LAN	Killer E2205 Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Power Connectors	24-pin ATX main power connector, 8-pin ATX 12V power connector
