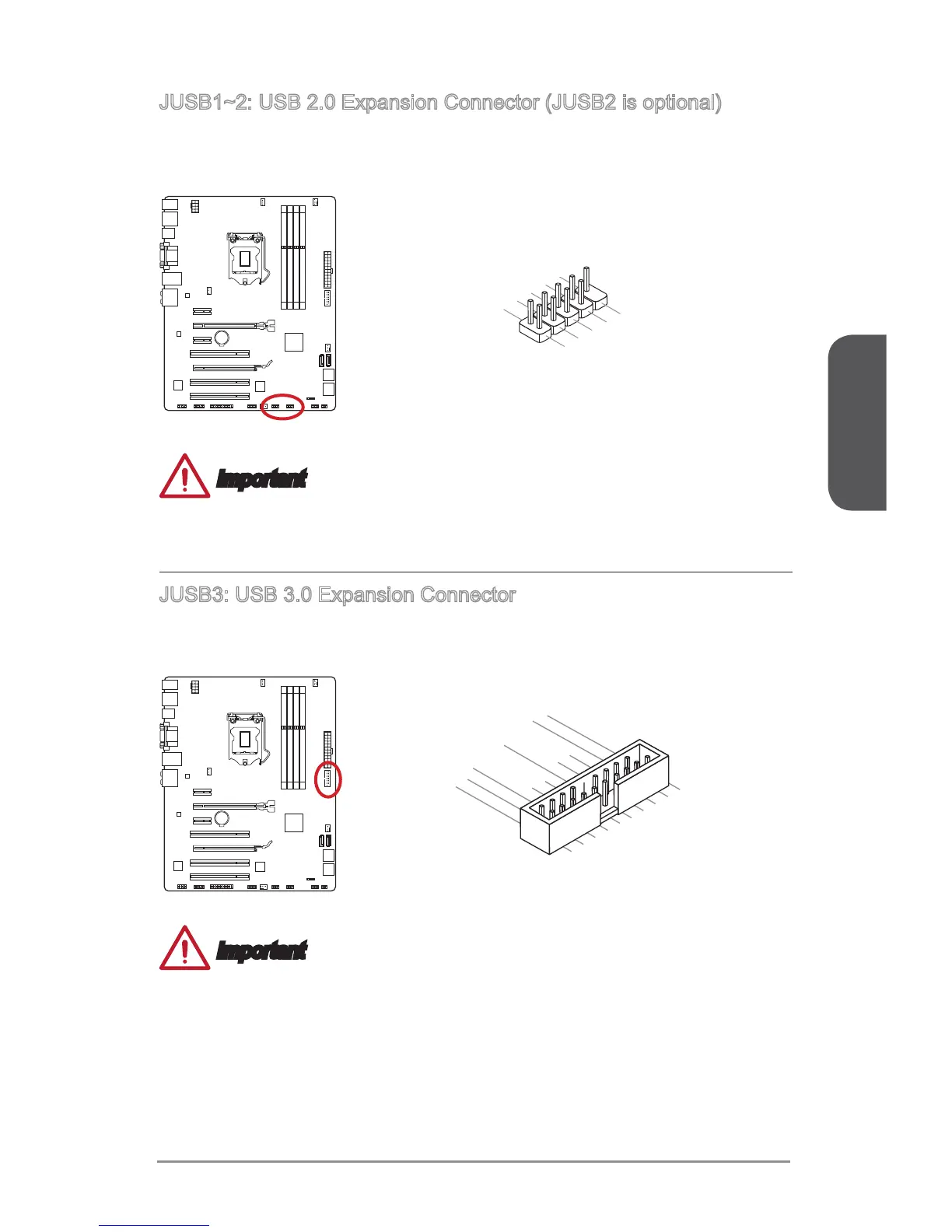

JUSB1~2: USB 2.0 Expansion Connector (JUSB2 is optional)
This connector is designed for connecting high-speed USB peripherals such as USB
HDDs, digital cameras, MP3 players, printers, modems, and many others.
DIM M1 DIM M2 DIM M3 DIM M4
1
.
V
C
C
3
.
U
S
B
0
-
1
0
.
NC
5
.
U
S
B
0
+
7
.
G
r
o
u
n
d
9
.
N
o
P
i
n
8
.
G
r
o
u
n
d
6
.
U
S
B
1
+
4
.
U
S
B
1
-
2
.
V
C
C
Important
Note that the VCC and GND pins must be connected correctly to avoid possible
damage.
JUSB3: USB 3.0 Expansion Connector
The USB 3.0 port is backwards compatible with USB 2.0 devices. It supports data
transfer rates up to 5Gbits/s (SuperSpeed).
DIM M1 DIM M2 DIM M3 DIM M4
5.
U
SB3_TX_C_DN
4
.Ground
3.USB3_RX_DP
2.USB3_RX_DN
1.Power
10.Ground
9.
+
U
SB2.0
8.
-
U
SB2.0
7
.Ground
6.USB3_TX_C_DP
20.No
Pi
n
19.Power
18.USB3_RX_DN
17.USB3_RX_DP
16.Ground
15.USB3_TX_C_DN
14.USB3_TX_C_DP
13.Ground
12.USB2.0
-
11
. +
U
SB2.0
Important
Note that the VCC and GND pins must be connected correctly to avoid possible
damage.
To use a USB 3.0 device, you must connect the device to a USB 3.0 port through
an optional USB 3.0 compliant cable.
•
•

MSI Z87-G43 GAMING Specifications

General

Chipset	Intel Z87
Form Factor	ATX
CPU Socket	LGA 1150
Maximum Memory	32GB
PCI Express x16 Slots	2
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	3
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0, 8 x USB 2.0
Multi-GPU Support	AMD CrossFireX
Memory Slots	4
Memory Standard	DDR3 1066/1333/1600
Audio	Realtek ALC1150
LAN	Killer E2205 Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Power Connectors	24-pin ATX main power connector, 8-pin ATX 12V power connector
