MSI Z87-G43 GAMING User Guide

English
En-15
Power Supply
Video Demonstration
Watch the video to learn how to install power supply connectors.
http://youtu.be/gkDYyR_83I4

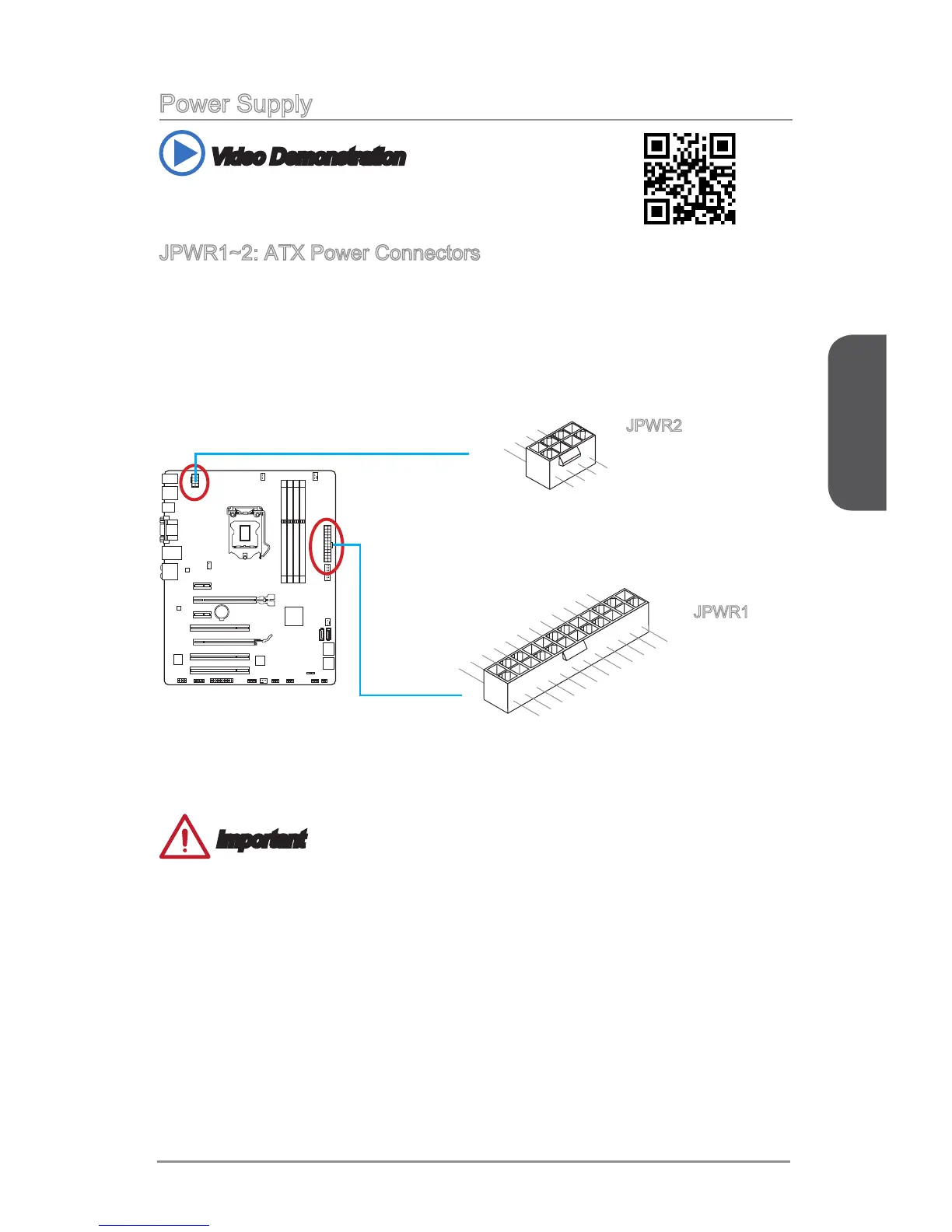

JPWR1~2: ATX Power Connectors
These connectors allow you to connect an ATX power supply. To connect the ATX
power supply, align the power supply cable with the connector and 󰘰rmly press the
cable into the connector. If done correctly, the clip on the power cable should be
hooked on the motherboard’s power connector.
13.+3.3
V
1.+3.3
V
14.-12V
2.+3.3
V
15.Ground
3
.Ground
16.PS-ON
#
4.+5
V
17.Ground
5
.Ground
18.Ground
6.+5
V
19.Ground
7
.Ground
22.+5
V
10.+12V
20.Res
8.PW
R O
K
23.+5
V
11
.+12V
21.+5
V
9.5VSB
24.Ground
12.+3.3V
7.+12V
3.Ground
5.+12V
1.
Ground
8.+12V
4
.Ground
6.+12V
2
.Ground
JPWR2
DIM M1 DIM M2 DIM M3 DIM M4
JPWR1
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.

MSI Z87-G43 GAMING Specifications

General

Chipset	Intel Z87
Form Factor	ATX
CPU Socket	LGA 1150
Maximum Memory	32GB
PCI Express x16 Slots	2
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	3
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0, 8 x USB 2.0
Multi-GPU Support	AMD CrossFireX
Memory Slots	4
Memory Standard	DDR3 1066/1333/1600
Audio	Realtek ALC1150
LAN	Killer E2205 Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Power Connectors	24-pin ATX main power connector, 8-pin ATX 12V power connector
