MSI Z87-G43 GAMING User Guide

English
En-20

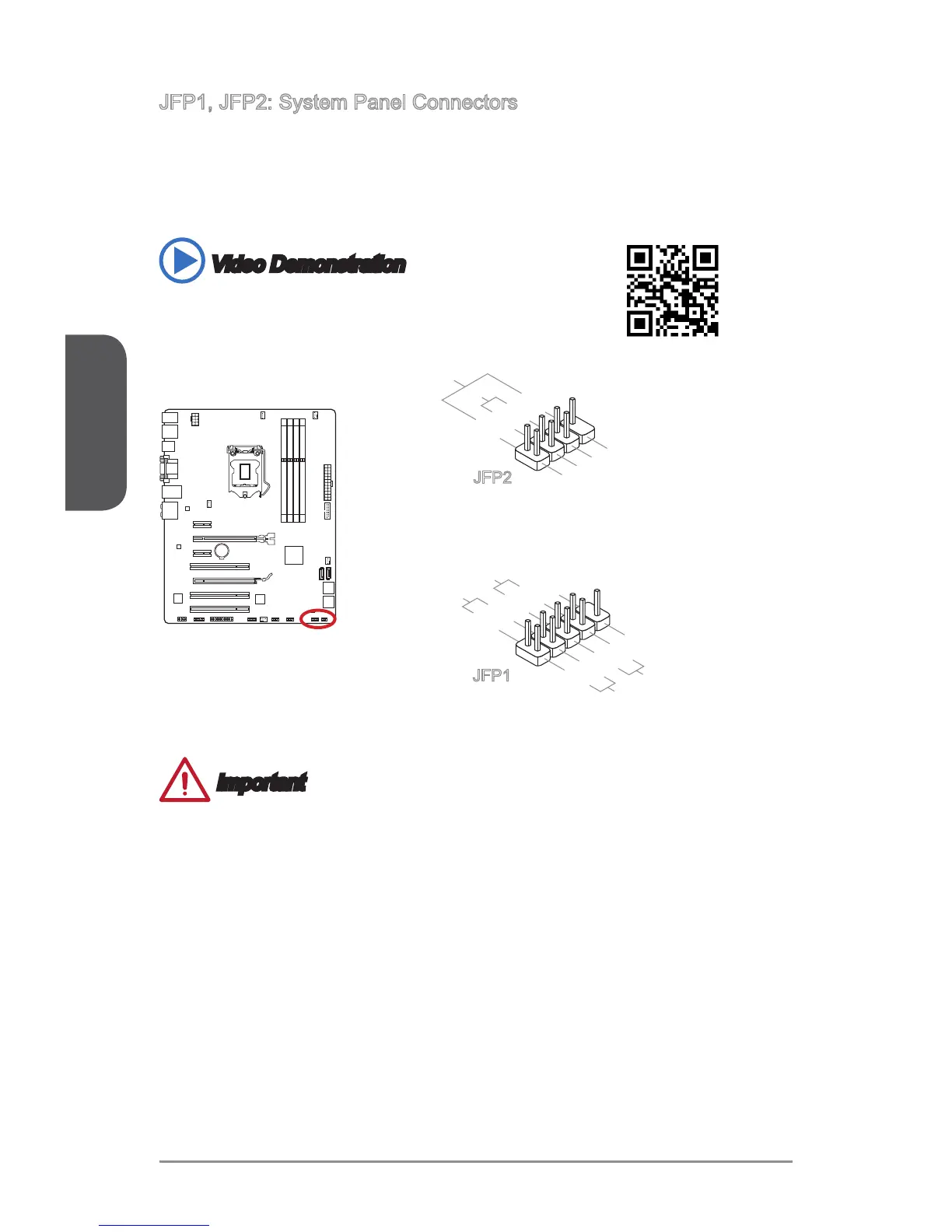

JFP1, JFP2: System Panel Connectors
These connectors connect to the front panel switches and LEDs. The JFP1 connector
is compliant with the Intel
®
Front Panel I/O Connectivity Design Guide. When
installing the front panel connectors, please use the optional M-Connector to simplify
installation. Plug all the wires from the computer case into the M-Connector and then
plug the M-Connector into the motherboard.
Video Demonstration
Watch the video to learn how to Install front panel connectors.
http://youtu.be/DPELIdVNZUI
DIM M1 DIM M2 DIM M3 DIM M4
1.+
3.
-
10.No
Pi
n
5.
-
Reset
S
witch
HDD
LE
D
P
ower
S
witch
P
ower
LE
D
7.
+
9.Reserve
d
8.
-
6.
+
4.
-
2.
+
JFP1
1
.Ground
3.Suspend
LE
D
5.Power
LE
D
7.No Pi
n
8.
+
6.
-
4.
+
2.
-
Buzzer
S
peaker
JFP2
Important
On the connectors coming from the case, pins marked by small triangles are
positive wires. Please use the diagrams above and the writing on the optional M-
Connectors to determine correct connector orientation and placement.
The majority of the computer case’s front panel connectors will primarily be plugged
into JFP1.
•
•

MSI Z87-G43 GAMING Specifications

General

Chipset	Intel Z87
Form Factor	ATX
CPU Socket	LGA 1150
Maximum Memory	32GB
PCI Express x16 Slots	2
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	3
SATA Ports	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0, 8 x USB 2.0
Multi-GPU Support	AMD CrossFireX
Memory Slots	4
Memory Standard	DDR3 1066/1333/1600
Audio	Realtek ALC1150
LAN	Killer E2205 Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Power Connectors	24-pin ATX main power connector, 8-pin ATX 12V power connector
