MTS Sensors Temposonics E-Series Brief Instructions

Temposonics
®
E-Series
Brief Instructions
I 11 I
NOTICE
Use magnets of the same type for multi-position
measurement, e.g. 2 × U-magnets (part no. 251 416-2).

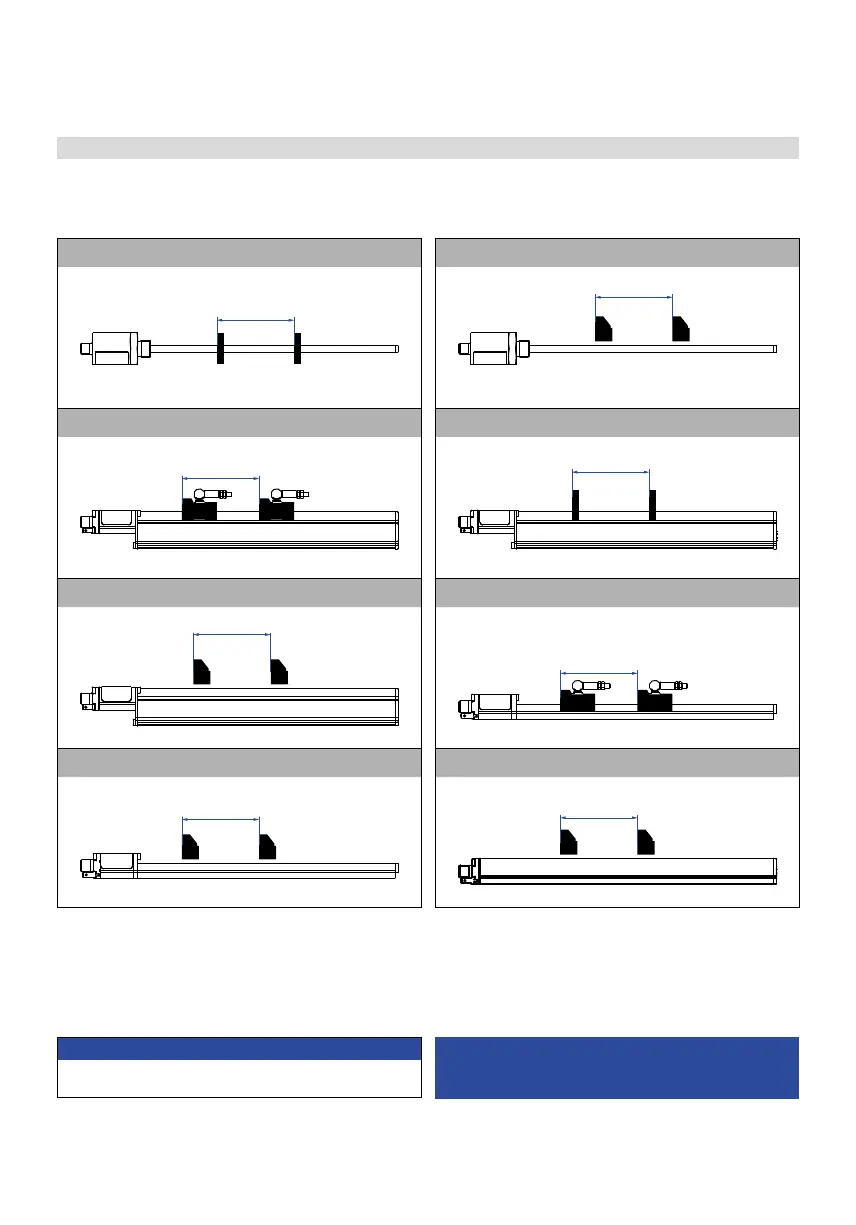

4.4 Multi-position measurement distances
E-Series EH with ring- / U-magnet E-Series EH with block magnet
≥ 75 (≥ 3)
≥ 75 (≥ 3)
E-Series EP with magnet slider “S” / “N” / “V” / “G” E-Series EP with U-magnet
≥ 75 (≥ 3)
≥ 75 (≥ 3)
E-Series EP with block magnet E-Series EL with magnet slider “S” / “N” / “V” / “G”
≥ 75 (≥ 3)
≥ 75 (≥ 3)
E-Series EL with block magnet E-Series EP2 with block magnet
≥ 75 (≥ 3)
≥ 75 (≥ 3)
Controlling design dimensions are in millimeters and
measurements in ( ) are in inches
Manuals, Software & 3D Models
available at: www.mtssensors.com
Multi-position measurement with E-Series EH, EP, EL and
EP2 sensors with Analog and CANopen output is possible
with a simultaneous measuring up to 2 positions.
The stroke length influences the maximum number of magnets.
Note the minimum distance between the magnets.
