MTS Sensors Temposonics E-Series Brief Instructions

Temposonics
®
E-Series
Brief Instructions

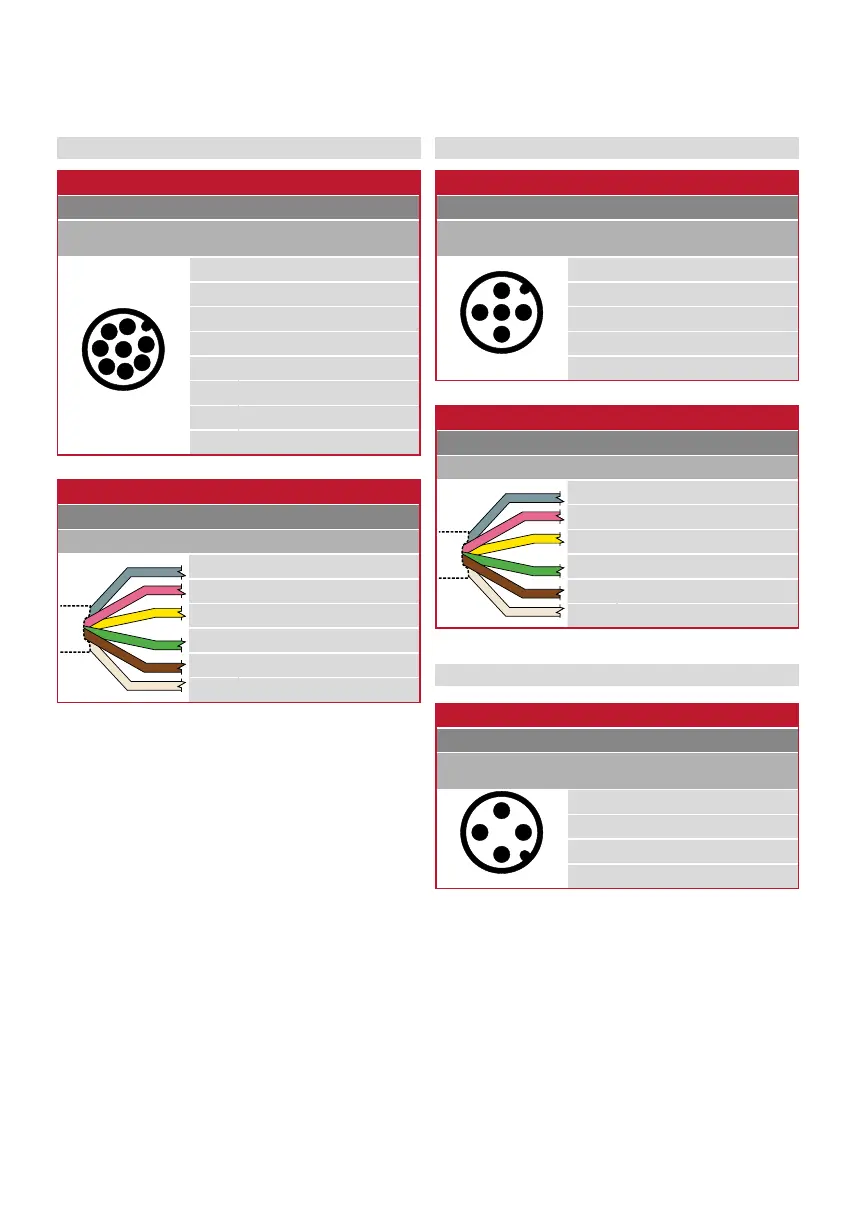

I 14 I
5.5 IO-Link
D44
Signal + power supply
M12 male connector
(A-coded)
Pin Function
2
1
4
3
View on sensor
1 +24 VDC (+25 %)
2 DI / DQ
3 DC Ground (0 V)
4 C / Q
5.4 CANopen
D34
Signal + power supply
M12 male connector
(A-coded)
Pin Function
1
2
3
4
5
View on sensor
1 Shield
2 +24 VDC (−15 / +20 %)
3 DC Ground (0 V)
4 CAN_H
5 CAN_L
EH with cable outlet (EHX / ETX)
Signal + power supply
Cable Color Function
GY CAN_L
PK CAN_H
YE Not connected
GN Not connected
BN +24 VDC (−15 / +20 %)
WH DC Ground (0 V)
5.3 SSI
D84
Signal + power supply
M12 male connector
(A-coded)
Pin Function
1
2
4
6
8
3
5
7
View on sensor
1 Clock (+)
2 Clock (−)
3 Data (+)
4 Data (−)
5 Not connected
6 Not connected
7 +24 VDC (−15 / +20 %)
8 DC Ground (0 V)
EH with cable outlet (EHX / ETX)
Signal + power supply
Cable Color Function
GY Data (−)
PK Data (+)
YE Clock (+)
GN Clock (−)
BN +24 VDC (−15 / +20 %)
WH DC Ground (0 V)
