MTS Sensors Temposonics E-Series Brief Instructions

Temposonics
®
E-Series
Brief Instructions
I 13 I

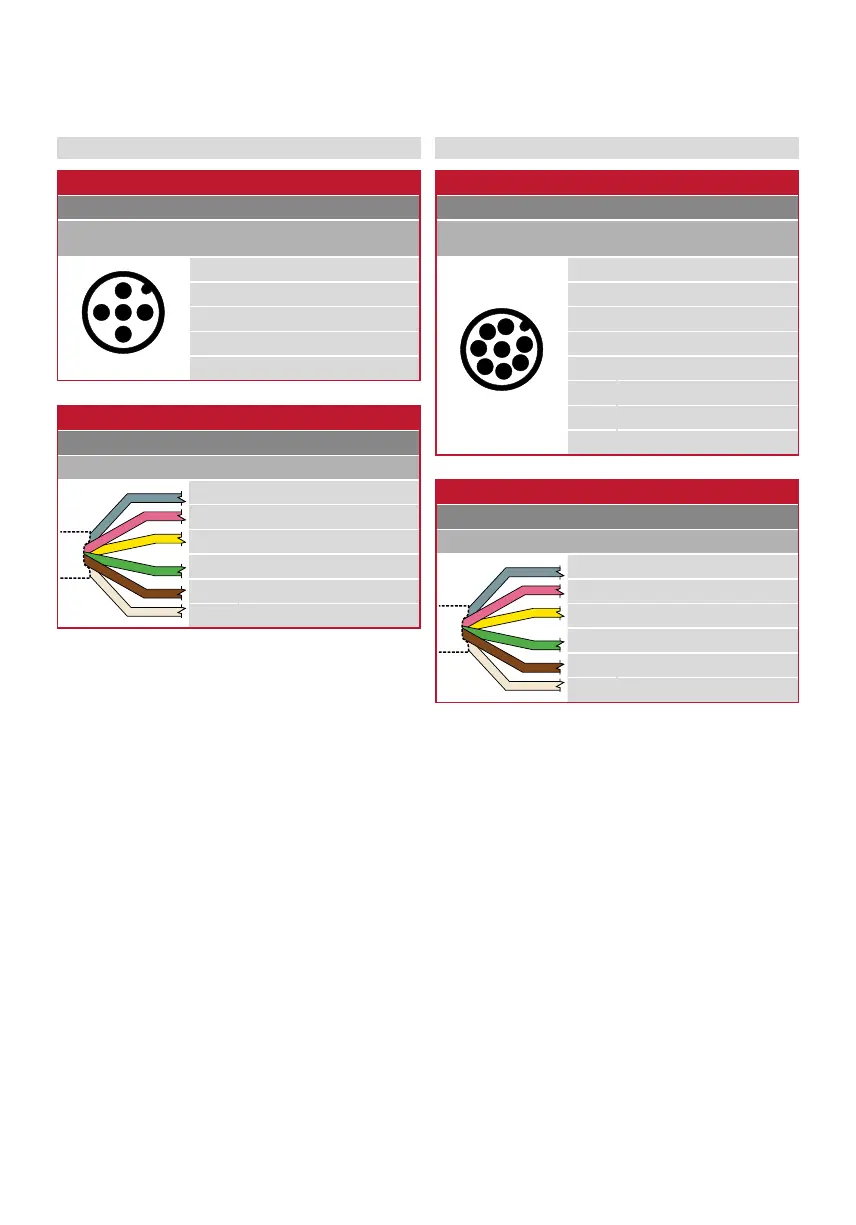

5.1 Analog 5.2 Start / Stop
D34
Signal + power supply
M12 male connector
(A-coded)
Pin Function
1
2
3
4
5
View on sensor
1 +24 VDC (−15 / +20 %)
2 Output 1
3 DC Ground (0 V)
4 Output 2
5 DC Ground
EH with cable outlet (EHX / ETX)
Signal + power supply
Cable Color Function
GY Output 1
PK GND (Signal)
YE Output 2
GN Not connected
BN +24 VDC (−15 / +20 %)
WH DC Ground (0 V)
D84
Signal + power supply
M12 male connector
(A-coded)
Pin Function
1
2
4
6
8
3
5
7
View on sensor
1 Start (+)
2 Start (−)
3 Stop (+)
4 Stop (−)
5 Not connected
6 Not connected
7 +24 VDC (−15 / +20 %)
8 DC Ground (0 V)
EH with cable outlet (EHX / ETX)
Signal + power supply
Cable Color Function
GY Stop (−)
PK Stop (+)
YE Start (+)
GN Start (−)
BN +24 VDC (−15 / +20 %)
WH DC Ground (0 V)
