Temposonics
®
R-Series V SSI
Operation Manual
I 22 I

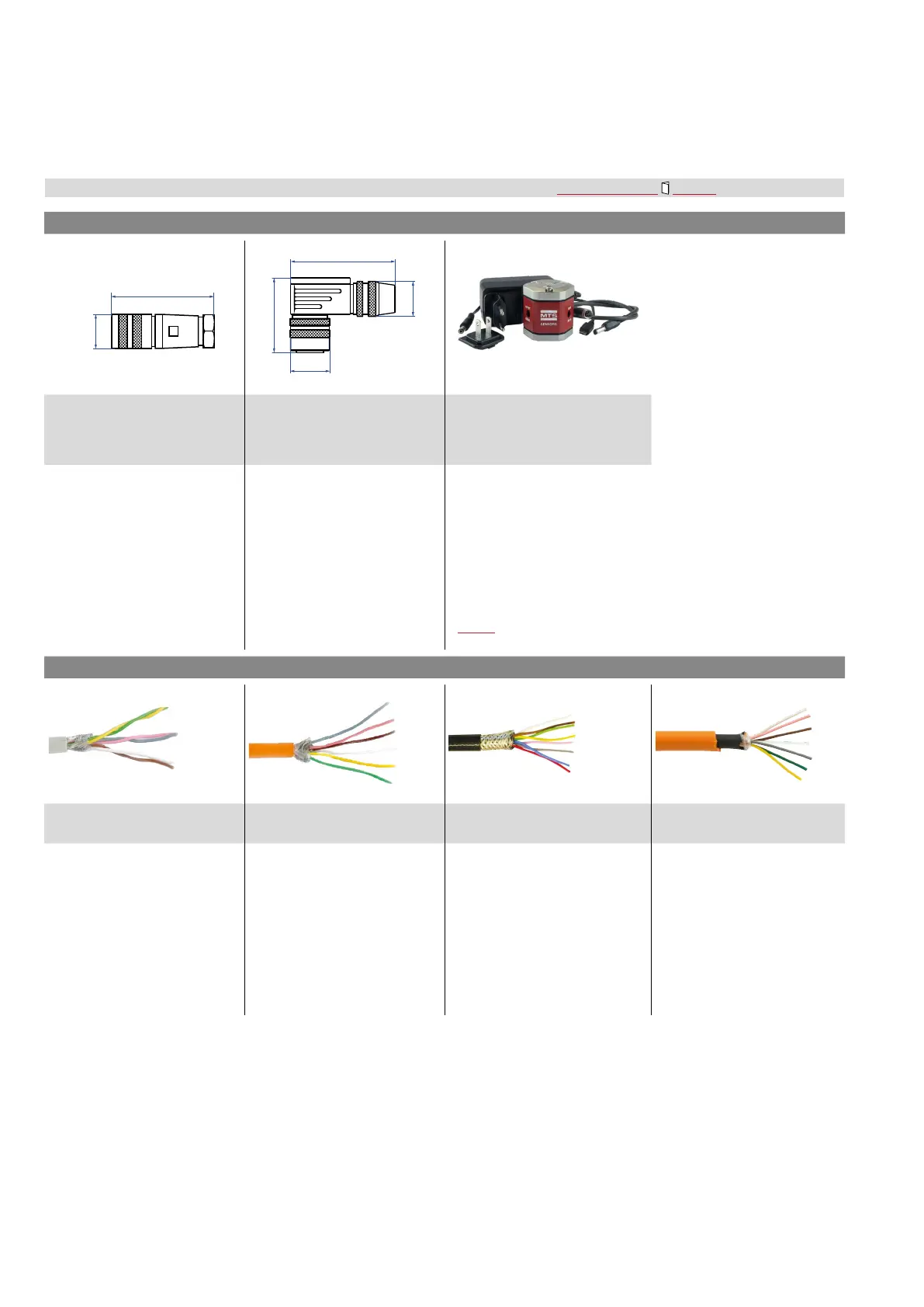

4.10 Frequently ordered accessories for SSI output – Additional options available in our Accessories Guide
551 444
Cable connectors* Programming tool
54
(2.13)
Ø 18
(
Ø 0.71)
54
(2.13)
38
(1.5)
Ø 20.5
(Ø 0.81)
Ø 18
(Ø 0.71)
M16 female connector (7 pin), straight
Part no. 370 624
M16 female connector (7 pin), angled
Part no. 560 779
TempoLink kit for Temposonics
®
R-Series V
Part no. TL-1-0-SD70 (for D70)
Part no. TL-1-0-AS00 (for cable output)
Material: Zinc nickel plated
Termination: Solder
Contact insert: Silver plated
Cable clamp: PG9
Cable Ø: 6…8 mm (0.24…0.31 in.)
Operating temperature:
−40…+100 °C (−40…+212 °F)
Ingress protection: IP65/IP67
(correctly  tted)
Fastening torque: 0.7 Nm
Material: Zinc nickel plated
Termination: Solder
Contact insert: Silver plated
Cable clamp: PG9
Cable Ø: 6…8 mm (0.24…0.31 in.)
Operating temperature:
−40…+100 °C (−40…+212 °F)
Ingress protection: IP65/IP67
(correctly  tted)
Fastening torque: 0.7 Nm
• Connect wirelessly via Wi-Fi enabled
device or via USB with the diagnostic
tool
• Simple connectivity to the sensor
via 24 VDC power line (permissible
cable length: 30 m)
• User friendly interface for mobile
devices and desktop computers
• See data sheet “TempoLink
smart assistant” (document part no.:
552070) for further information
Cables
PVC cable
Part no. 530 032
PUR cable
Part no. 530 052
Te on
®
cable
Part no. 530 112
PUR cable
Part no. 530 175
Material: PVC jacket; gray
Features: Twisted pair, shielded, fl exible
Cable Ø: 6 mm (0.23 in.)
Cross section: 3 × 2 × 0.14 mm
2
Bending radius: 10 × D
( xed installation)
Operating temperature:
−40…+105 °C (−40…+221 °F)
Material: PUR jacket; orange
Features: Twisted pair, shielded,
highly fl exible, halogen free, energy
chain capable, mostly oil & fl ame
resistant
Cable Ø: 6.4 mm (0.25 in.)
Cross section: 3 × 2 × 0.25 mm
2
Bending radius: 5 × D
( xed installation)
Operating temperature:
−30…+80 °C (−22…+176 °F)
Material: Tefl on
®
jacket; black
Features: Twisted pair, shielded, fl exible,
high thermal resistance, mostly oil &
acid resistant
Cable Ø: 7.6 mm (0.3 in.)
Cross section: 4 × 2 × 0.25 mm²
Bending radius: 8 – 10 × D
( xed installation)
Operating temperature:
−100…+180 °C (−148…+356 °F)
Material: PUR jacket; orange
Features: Flexible, additional EMC
protection
Cable Ø: 6.5 mm (0.26 in.)
Cross section: 6 × 0.14 mm
2
Bending radius: 10 × D
( xed installation)
Operating temperature:
−30…+90 °C (−22…+194 °F)
*/
Follow the manufacturer‘s mounting instructions
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
