National Instruments NI CompactDAQ 9184 User Manual

5-14 | ni.com
Chapter 5 Counters

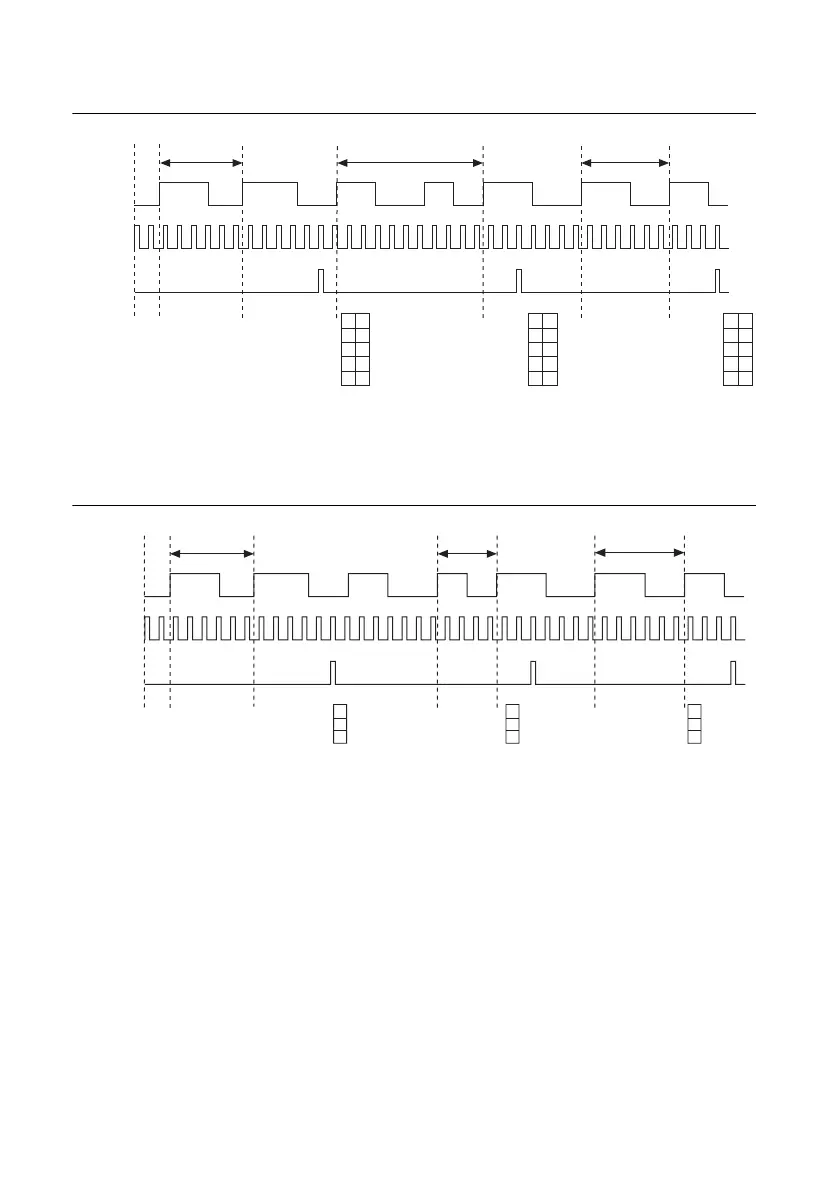

Figure 5-15. Sample Clocked Buffered Frequency Measurement (Averaging)
When CI.Freq.EnableAveraging is set to false, the frequency measurement returns the
frequency of the pulse just before the sample clock. This single measurement is a single
frequency measurement and is not an average between clocks as shown in Figure 5-16.
Figure 5-16. Sample Clocked Buffered Frequency Measurement (Non-Averaging)
With sample clocked frequency measurements, ensure that the frequency to measure is twice as
fast as the sample clock to prevent a measurement overflow.
Choosing a Method for Measuring Frequency
The best method to measure frequency depends on several factors including the expected
frequency of the signal to measure, the desired accuracy, how many counters are available, and
how long the measurement can take. For all frequency measurement methods, assume the
following:
fx is the frequency to be measured if no error
fk is the known source or gate frequency
measurement time (T) is the time it takes to measure a single sample
Gate
(fx)
Source
(fk)
Sample
Clock
Counter Armed
S1 S2 S3
T1 T2
1
6
T1 T2
17
210
T1 T2
1
7
2
10
1
6
Buffer
121
6106
Gate
Source
Sample
Clock
Counter Armed
Latched
Values
6
646
4
6
4
6
6
