Navien NHB-150 Service Manual

18 NHB Service Manual
Version 1.0

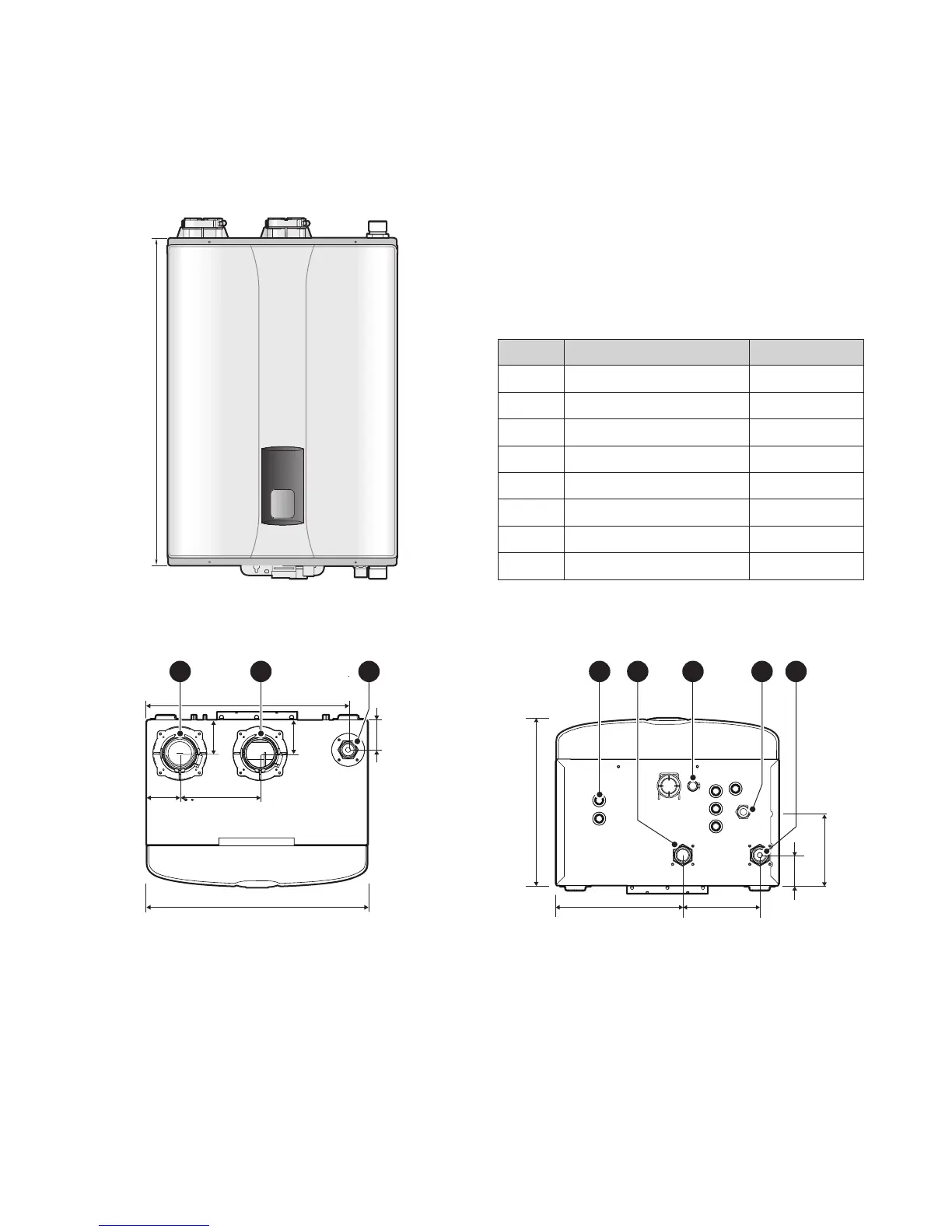

3.2 Dimensions
The following diagrams show the dimensions of the boiler and the table lists the supply connections.
23.6" (600 mm)
Supply Connections
Description Diameter
A Air Intake 2 in
B Exhaust Gas Vent 2 in
C Air Vent Connection
3
/
4
in
D Rubber Grommet 1 in
E Space Heating Return 1 in
F Condensate Outlet
1
/
2
in
G Gas Connection
3
/
4
in
H Space Heating Supply 1 in
Overhead View
15.9” (405 mm)
A
B
4.5” (115 mm)
(77 mm)3” (67 mm)2.6”
(60 mm)2.3”
C
6.6” (170 mm)
17.3” (440 mm)
Supply Connections
15.8” (401 mm) 6” (152 mm)
2.3” (60 mm)
5.5” (141 mm)
D FE
13.1” (335 mm)*
* NHB-055/080: 11.8” (300 mm)
H
G

Navien NHB-150 Specifications

General

Model	NHB-150
Category	Boiler
Maximum Input	150, 000 BTU/h
AFUE	95%
Vent Type	Direct Vent
Fuel Type	Natural Gas or Propane
Min. Input (NG)	15, 000 BTU/h
Min. Input (LP)	15, 000 BTU/h
Voltage	120 V
Water Connection Size	1 inch NPT
Gas Connection Size	3/4 inch NPT
Vent Diameter	3"
