Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface)
standard.

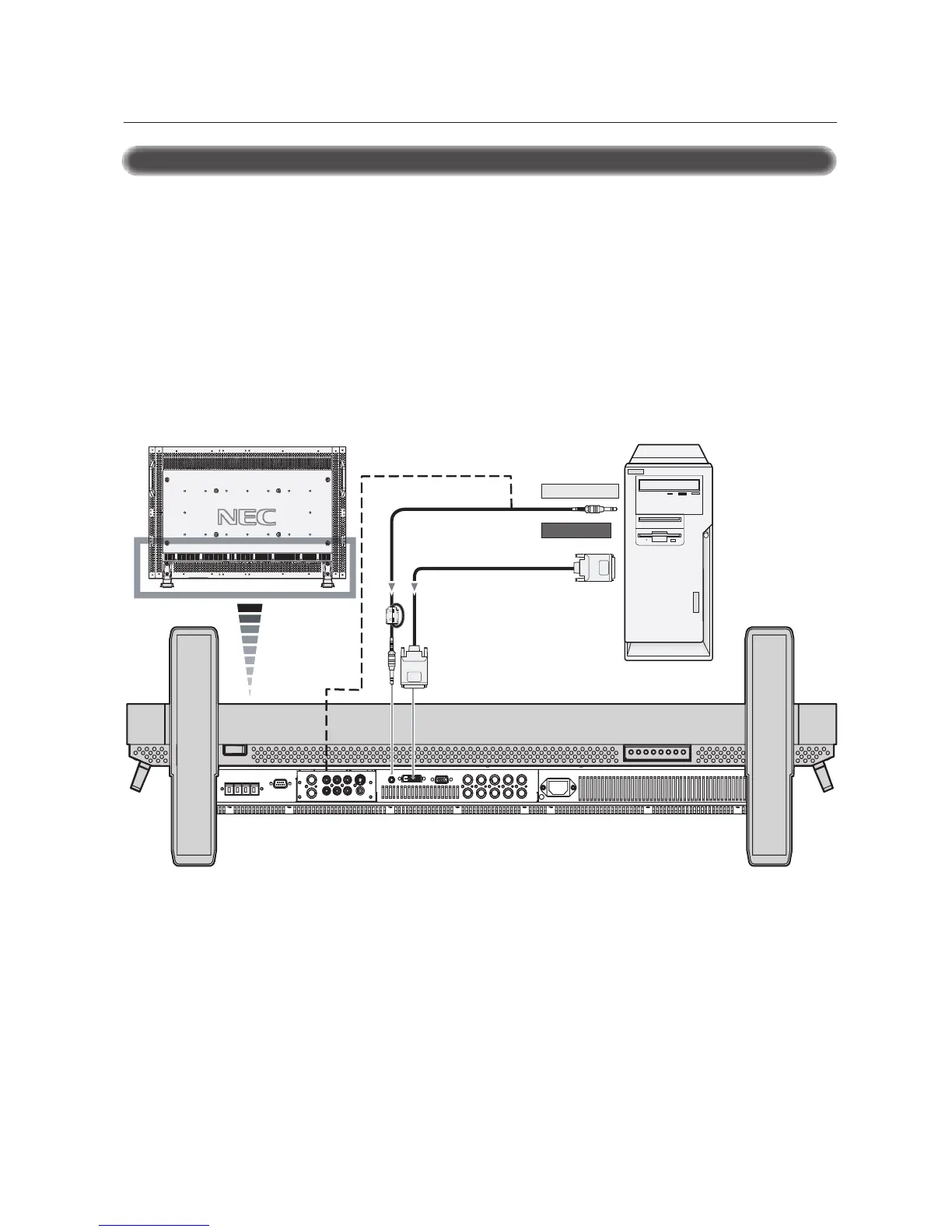

Equipment with a digital interface
such as a personal computer with
RGB output (TMDS)
DVI-D connector
DVI-D connector
To DVI output
To audio output
LCD monitor
Connecting to a Computer with a Digital Output
The RGB 1 IN connector also accepts a DVI-D cable.
Input TMDS signals conforming to DVI standards.
To maintain display quality, use a cable recommended by DVI standards.
The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
