QX-S5500 Series Ethernet Switches
3
3 Installing the Switch
3.1 Installation of hardware
3.1.1 Installing the Switch into a 19-Inch Rack Using Mounting Brackets
An installation procedure is explained below.
NOTE:
Mounting brackets of this switch standard attachment, the EIA standard, it corresponds to 19-inch standard
cabinet based.
Follow these steps to mount a switch into a 19-inch standard cabinet:
1) Wear an ESD-preventive wrist strap and ensure a good skin contact and grounding.
2) Check the grounding and stability of the cabinet.
3) Take out the screws which are packed together with the front mounting brackets, and
fix one end of mounting brackets to the switch, as shown in Figure 3-1.

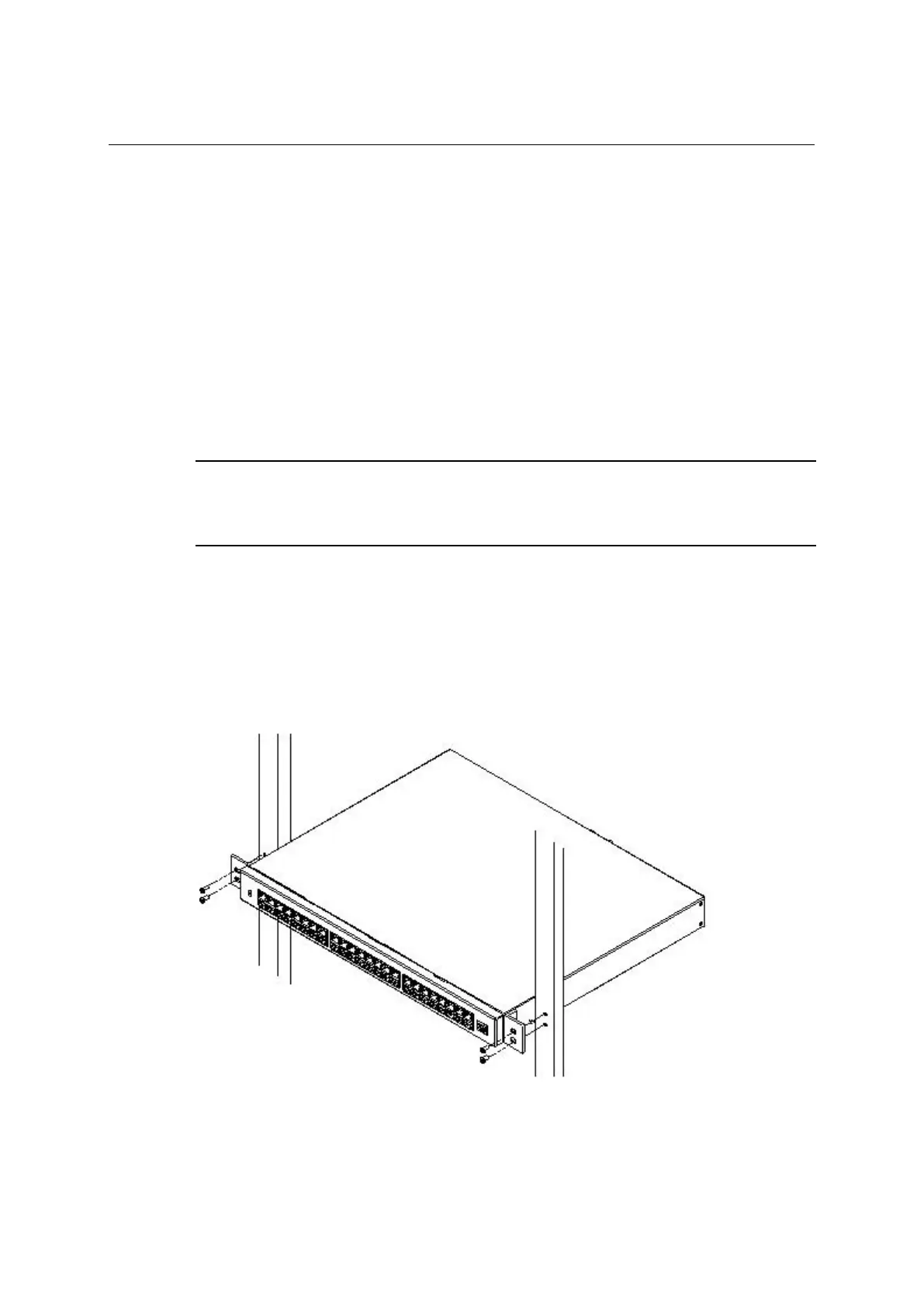

Figure 3-1 Fix front mounting brackets
3-1
