6.1 Wiring AC Connections
Connect the wires that carry the AC voltage from the PowerRouter to the
utility grid in the order described in this procedure. Deviating from this
procedure could expose you to high voltages that can cause serious injury
and/or death.

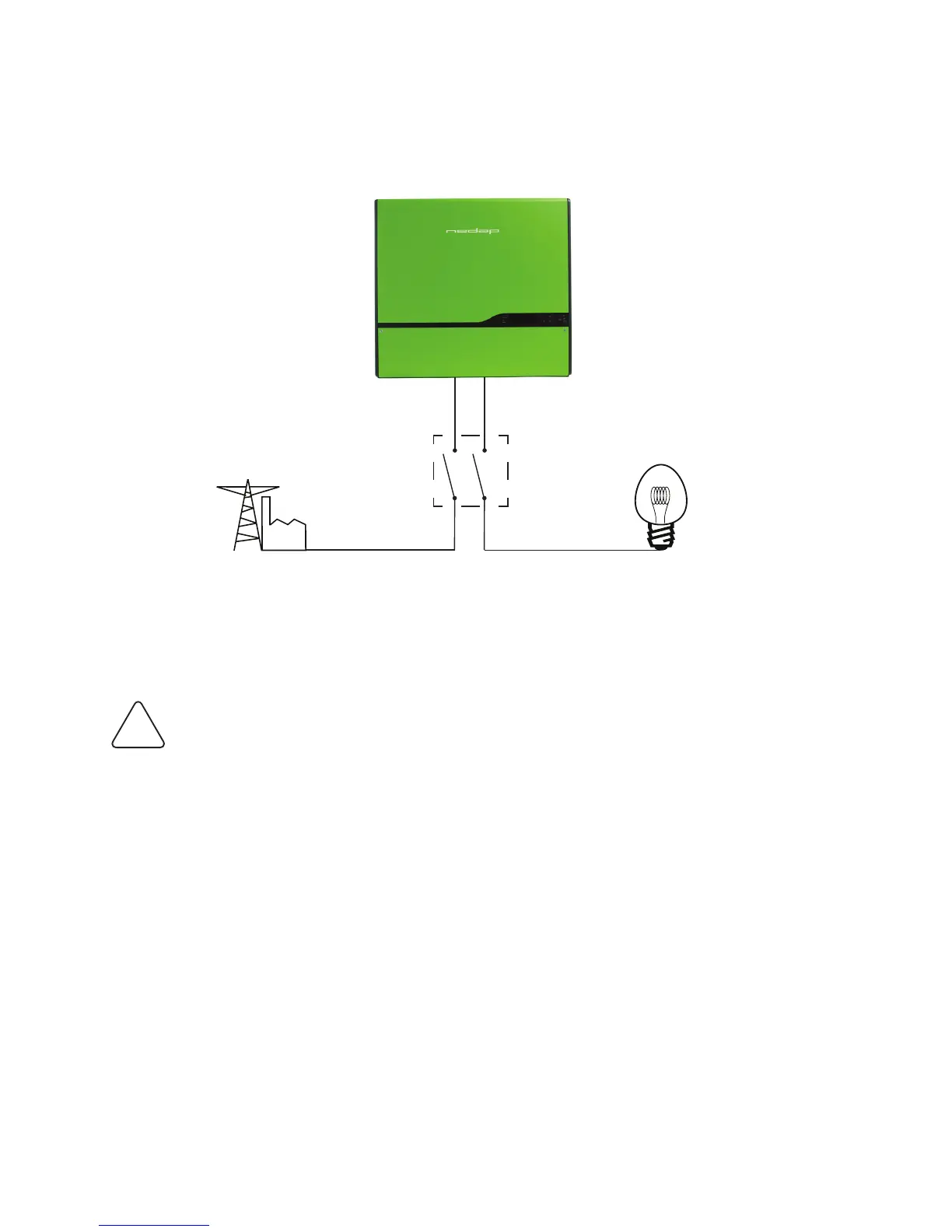

Figure 10 AC connection schematic
This section describes the AC connections of the PowerRouter to the utility grid and
the load.
breaker box
!
warning
