Nexo Ray Sub Series System Manual

RS HARDWARE SETUP PROCEDURE
Page 18 / 76 System Manual RS Series
5.2 RS15 General Instructions
IMPORTANT
IN ORDER TO PREVENT SCREWS FROM GETTING LOOSE, USE BLOCKING LIQUID LOCTITE
TM
243 OR
EQUIVALENT FOR ALL SCREWS USED WITH RS15 ACCESSORIES.
5.2.1 RS15 “Left” and “Right”
NEXO RS15 Subwoofer is delivered with a pair of skids to be mounted on the cabinet.
NEXO recommends to create pairs of “RS15 LEFT” and “RS15 RIGHT” for optimized flexibility.
Benefits of such recommendation are related to directional use in array configurations, where RS15s are to be positioned back
to back, face to face or in vertical columns alternating speaker side.
However, users might prefer to have all RS15s configured identically, in which case they should all be “RS15 RIGHT” so that
skids are opposite to pole stand hole.
Mounting skids on the pole stand hole side defines a “RS15 LEFT”.
In such a case, front grid must be removed, flipped over and reinstalled so that NEXO logo appears on the same side than the
skids.

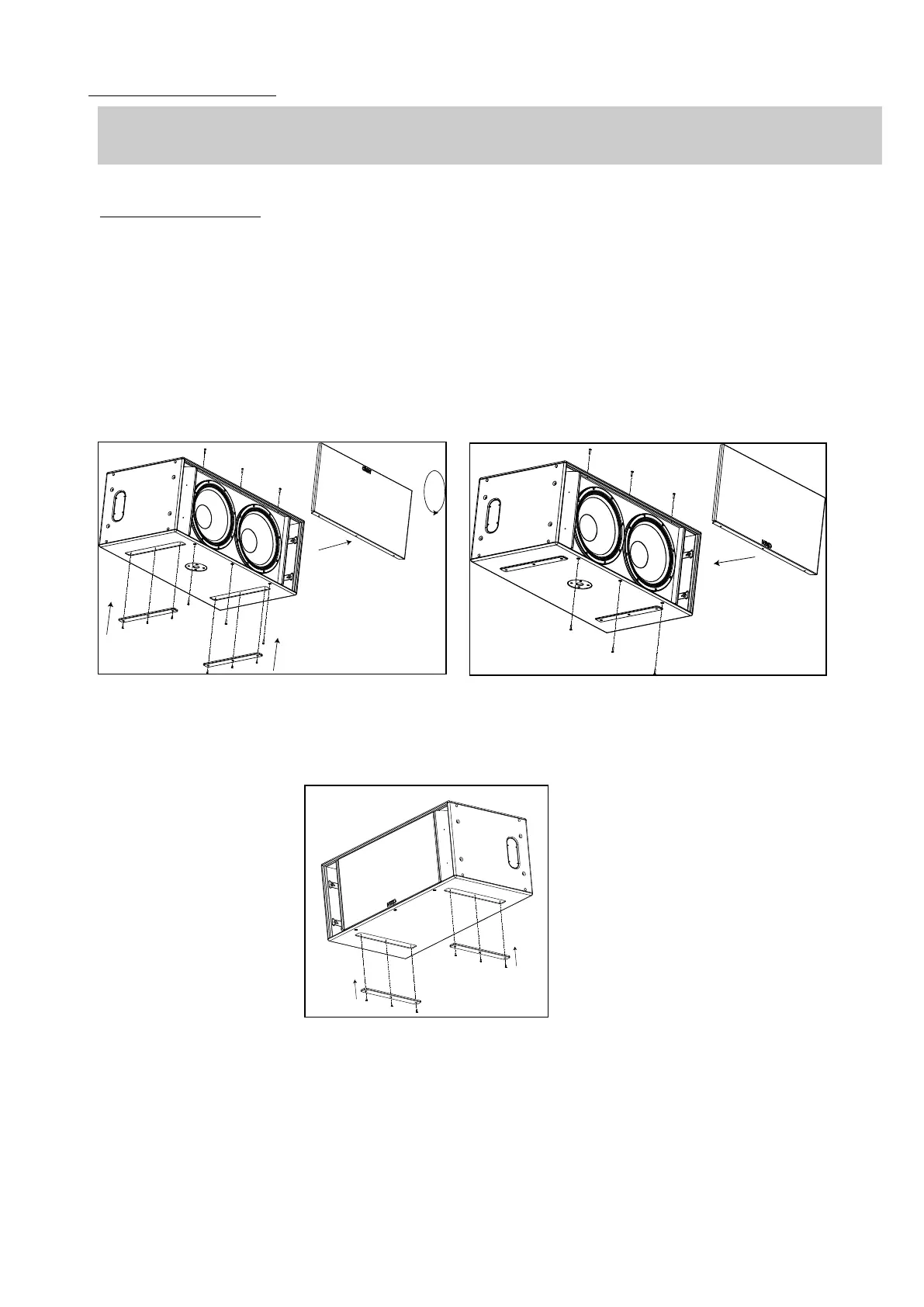

CONFIGURING RS15 AS LEFT
Mounting skids opposite to the pole stand hole side defines a “RS15 RIGHT”.
CONFIGURING RS15 AS RIGHT
