RAY SUB IMPLEMENTATION
System Manual RS Series Page 43 / 76
7.2 Directional Mode
IMPORTANT
RS15 can be installed “Left” or “Right” (see section 5.2.1):
- “Left” means grid is Left when looking from front
- “Right” means grid is right when looking from front
Whenever possible, NEXO recommends symmetrical designs.
7.2.1 Single RS15 or RS18
Single RS15 and RS18 have an asymmetrical pattern in the horizontal plane (ie speakers on the side), which is tilted 30°
off-axis towards speakers direction; vertical pattern (ie speakers facing up or down) is symmetrical).

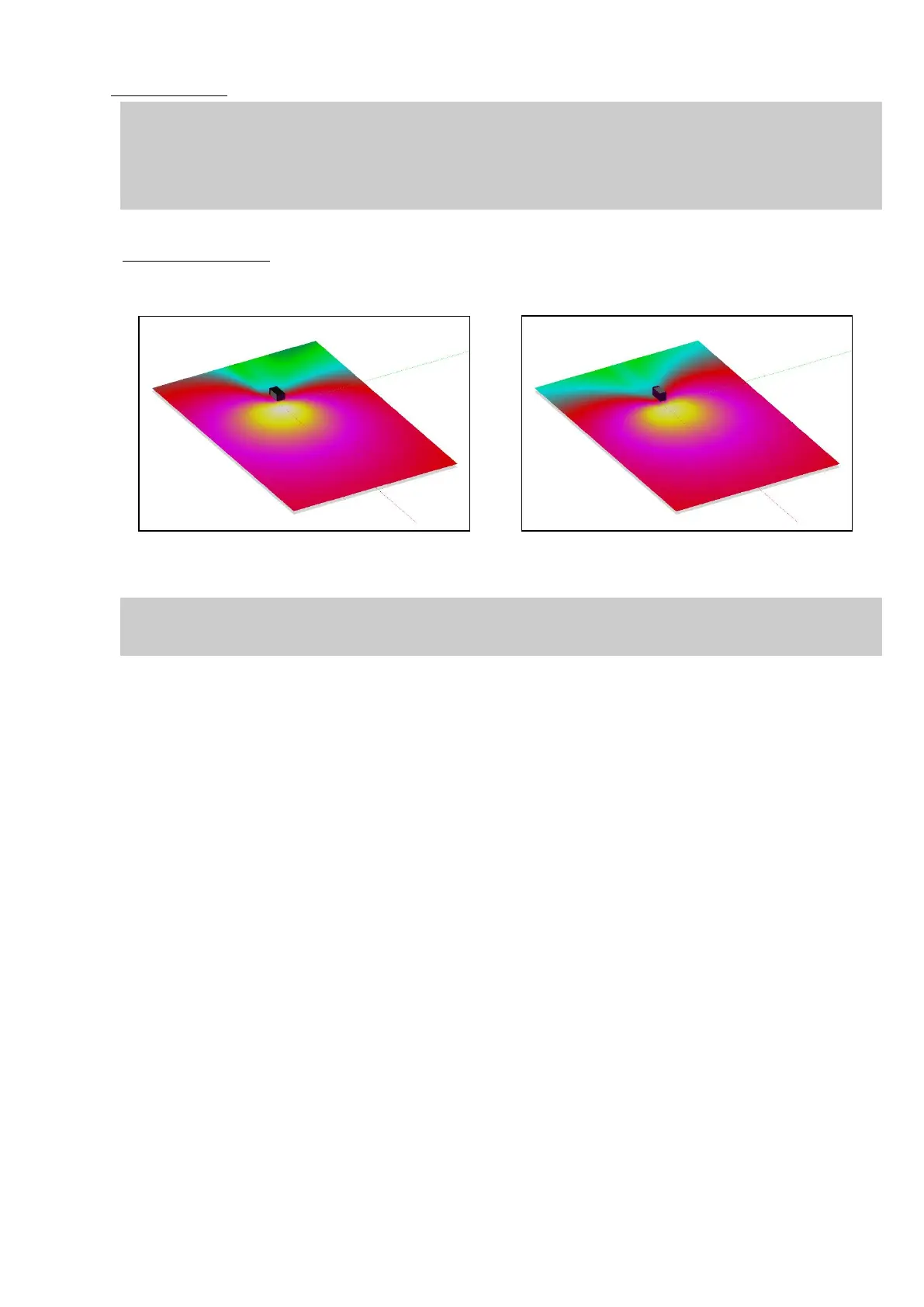

HORIZONTAL COVERAGE IN DIRECTIONAL MODE (100 HZ) VERTICAL COVERAGE IN DIRECTIONAL MODE (100 HZ)
IMPORTANT
So that directional behaviour and acoustic load are not altered, no reflecting surface should be at less
than 50cm (20”) from the RS15 and RS18 side walls and drivers.
In case of stereo configurations, NEXO recommends that speaker side is set outwards to minimize interference region in
stereo designs. (ie “RS15s LEFT” should be installed Left and “RS15s RIGHT” should be installed Right).
