RS GENERAL SET-UP INSTRUCTIONS
System Manual RS Series Page 9 / 76
2.1.3 Configuring connector and owner plates
Owner and connector plates can be exchanged depending on chosen directional configuration.
Please note that connector plates can pass through the holes, it is therefore not required to unsolder the connectors.
Directional Mode: it is recommended to install the connector panel on the side which supports the rigging plates. Connection
side is always opposite to FOH (main lobe direction)

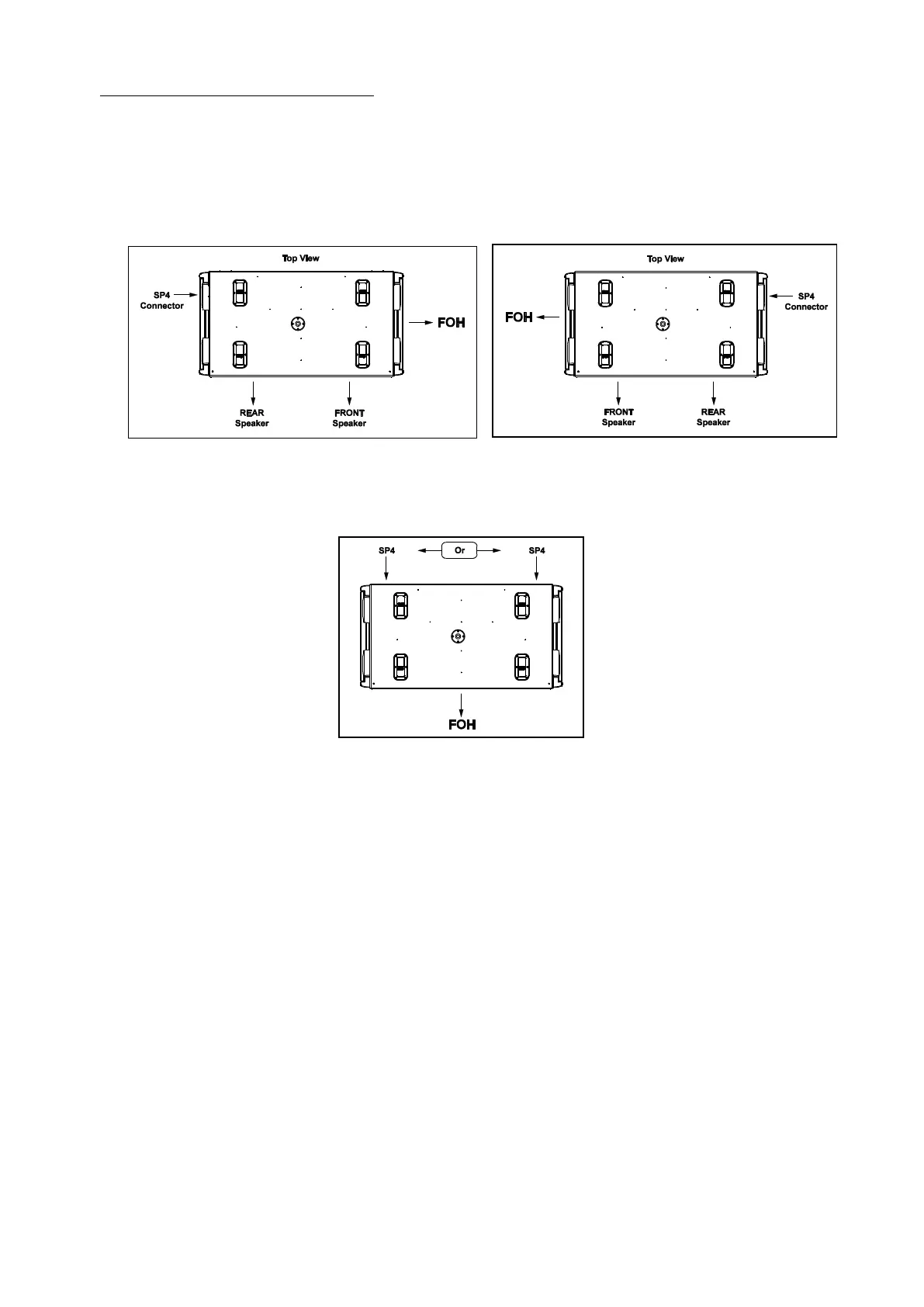

Connector plate in Directional Mode
Omni Mode: it is recommended to install the connector panel on the side opposite to the drivers (factory default configuration)
Connector PLATE IN Omni Mode
