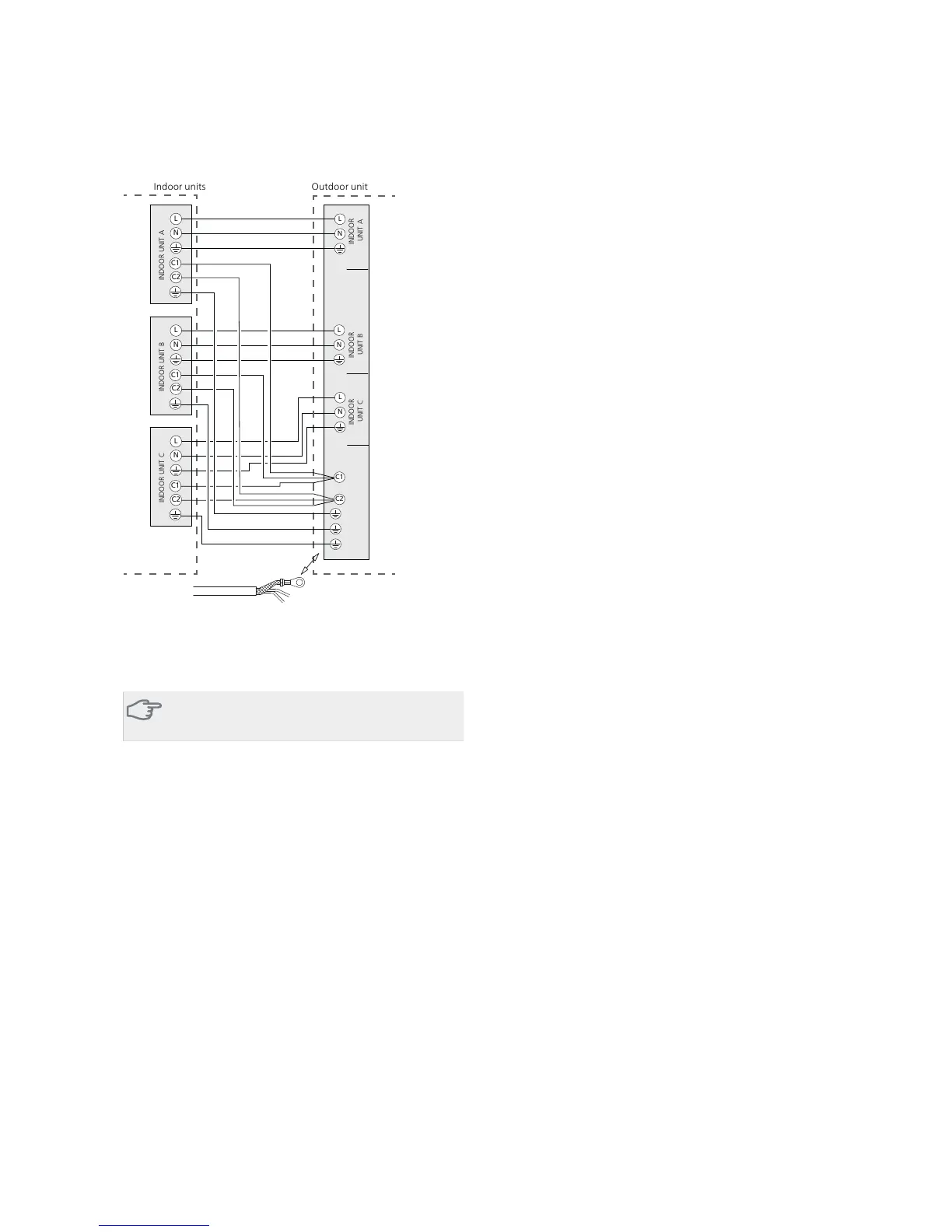

Three indoor units
INDOOR UNIT C INDOOR UNIT B INDOOR UNIT A
INDOOR
UNIT A
INDOOR
UNIT B
INDOOR
UNIT C
L
N
C2
C1
L
N
C2
C1
L
N
C2
C1
C2
C1
L
N
L
N
L
N
Outdoor unit
Indoor units
Connecting accessories
The outdoor unit is prepared for connection of a condens-
ation water pipe (AG-CH10).
Caution
Also see the Installer Manual for AG-CH10.
13Chapter 4 | Electrical connectionsAG-AC10
