General
Our recommended model combinations are as follows.
Indoor unit
Indoor units with last number -4Size A
Indoor units with last number -7Size B
AG-DW10 is connected to the marked AG-DW10 port.
Indoor unit
(circuit C)
Indoor unit
(circuit B)
Indoor unit
(circuit A)
Outdoor unit
Number of indoor
units
BAG-AC10-651
AA
AG-AC10-652 AB
BB
AAB
AG-AC10-653
AAA

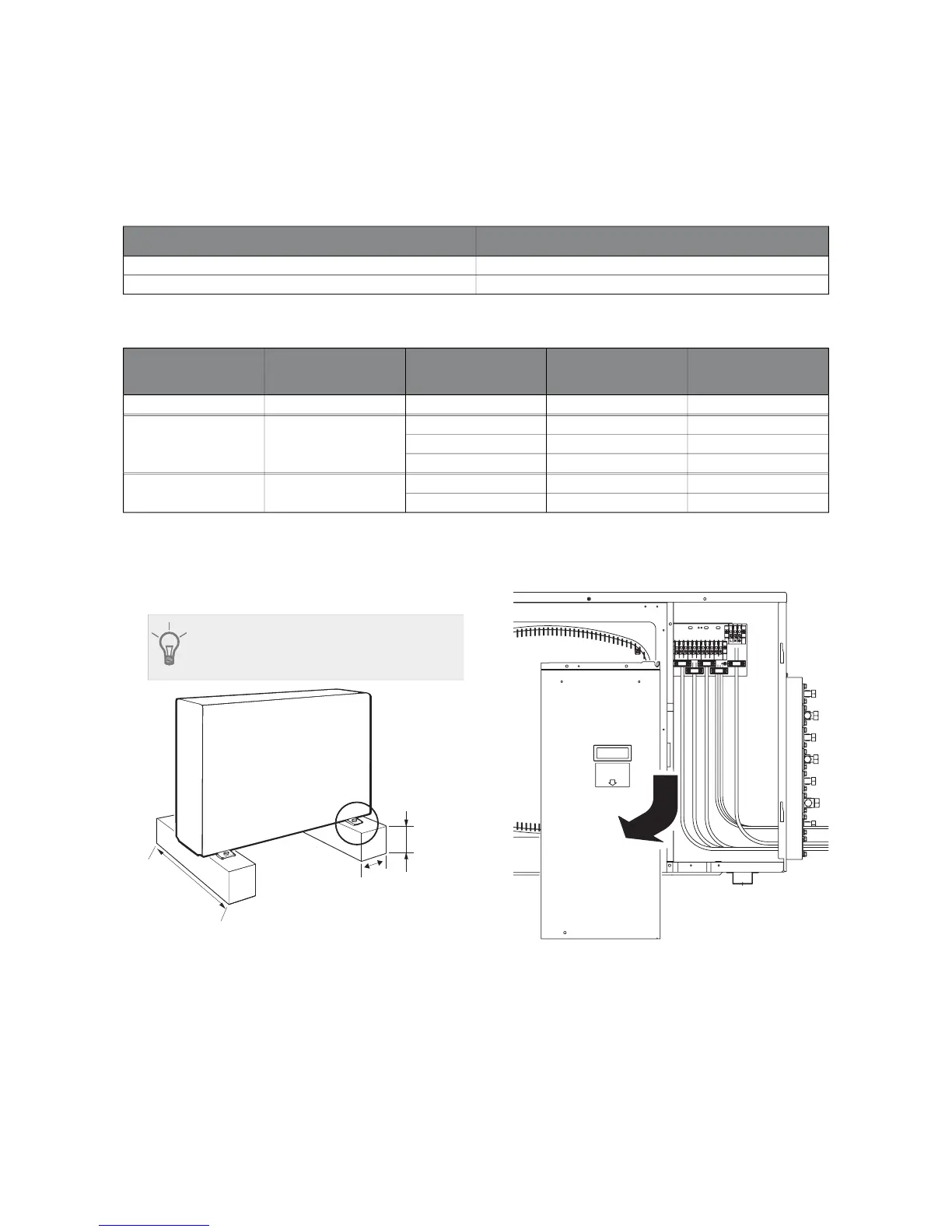

Installation instructions
1.
Place the outdoor unit on a stable base raised above
the ground and secure it.
TIP
When installing stand, install screws down-
ward to facilitate removal of the front panel.
300
400
100
2.
Remove the front panel, then connect the supply
and communication cables to the outdoor unit and
secure them with load relief.
AG-AC10Chapter 5 | Installation14
5 Installation
